- the current passages that lead to the track

movements;

- the leds indicating the opening or closing of the

tracks;

- the electro valves of outriggers, aerial part and

basket;

- the electro valves that regulate the track speed.

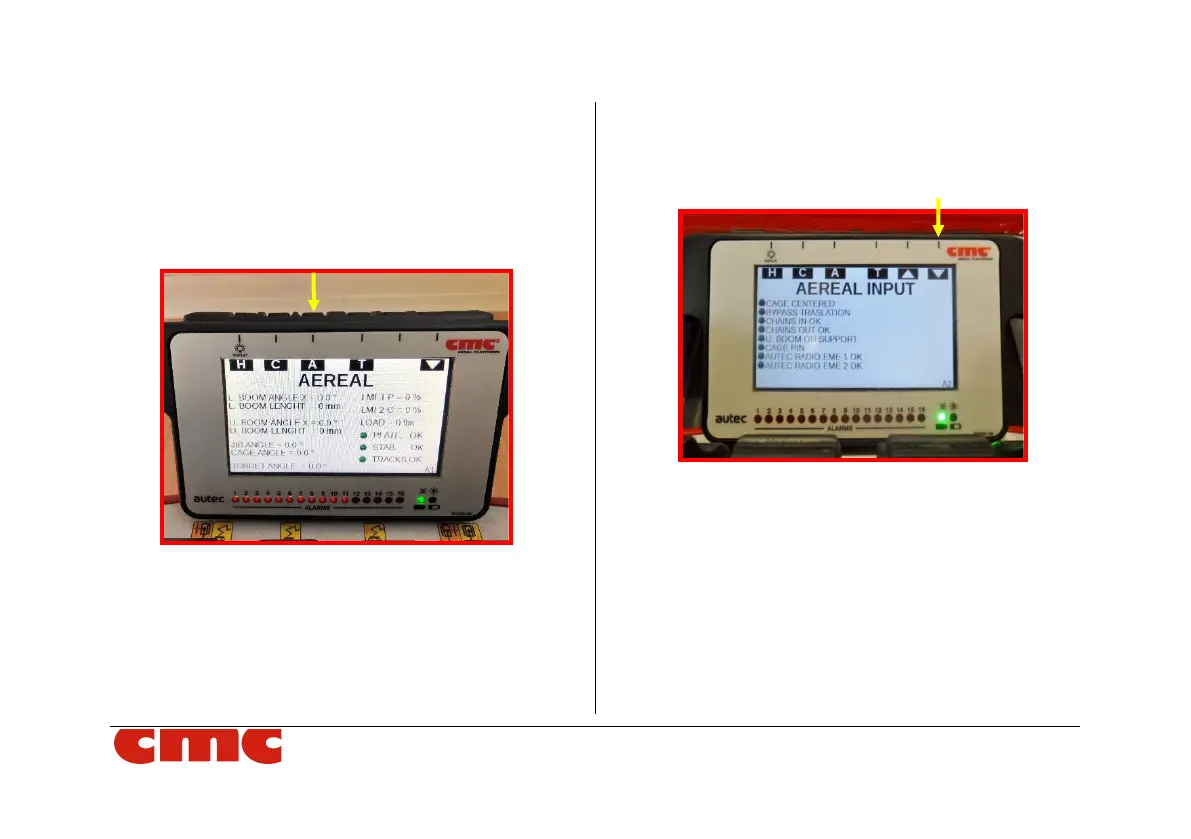

Picture 24: A1 screen.

By pressing the A key, you access the "Aerial Platform"

screen (Picture 24), which allows you to view all the data

concerning the aerial part of the machine.

In the A1 screen there are the values related to:

- length and angles of the booms;

- angles of jib, basket and turret;

- basket load;

- pressure and geometric limiters;

- consent leds for stabilization, use of tracks and

aerial part.
