MAN.243 Rev.5 ENG - Use and maintenance manual S28 page 42 of 138

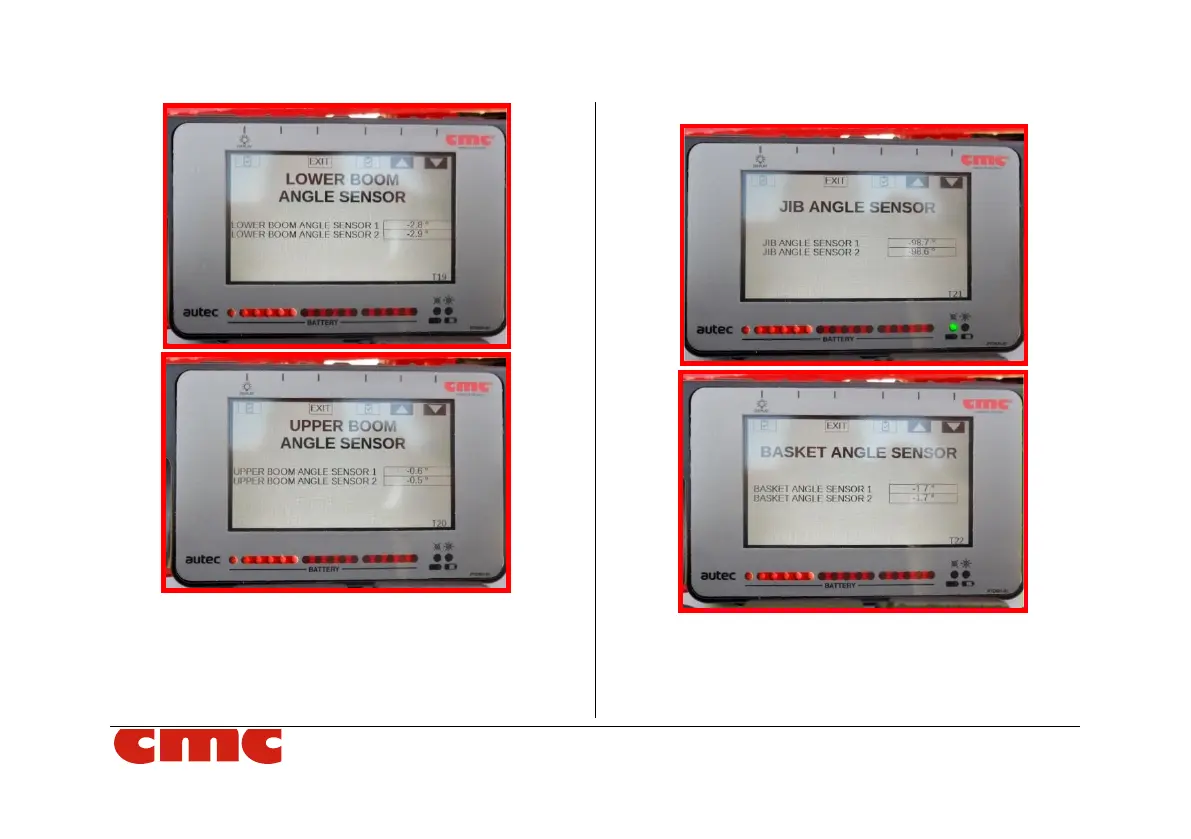

Picture 35: T19-T20 screens.
In T19-T20 screens (Picture 35), the values of the two
lower boom angle sensors and the two upper boom
angle sensors are visualized: their sensor calibration can
be reset.
Picture 36: T21-T22 screens.
The T21-T22 (Picture 36) screens show the values of the
two jib angle sensors and the two basket angle sensors:
it is possible to reset the sensor calibration.
