MAN.243 Rev.5 ENG - Use and maintenance manual S28 page 43 of 138

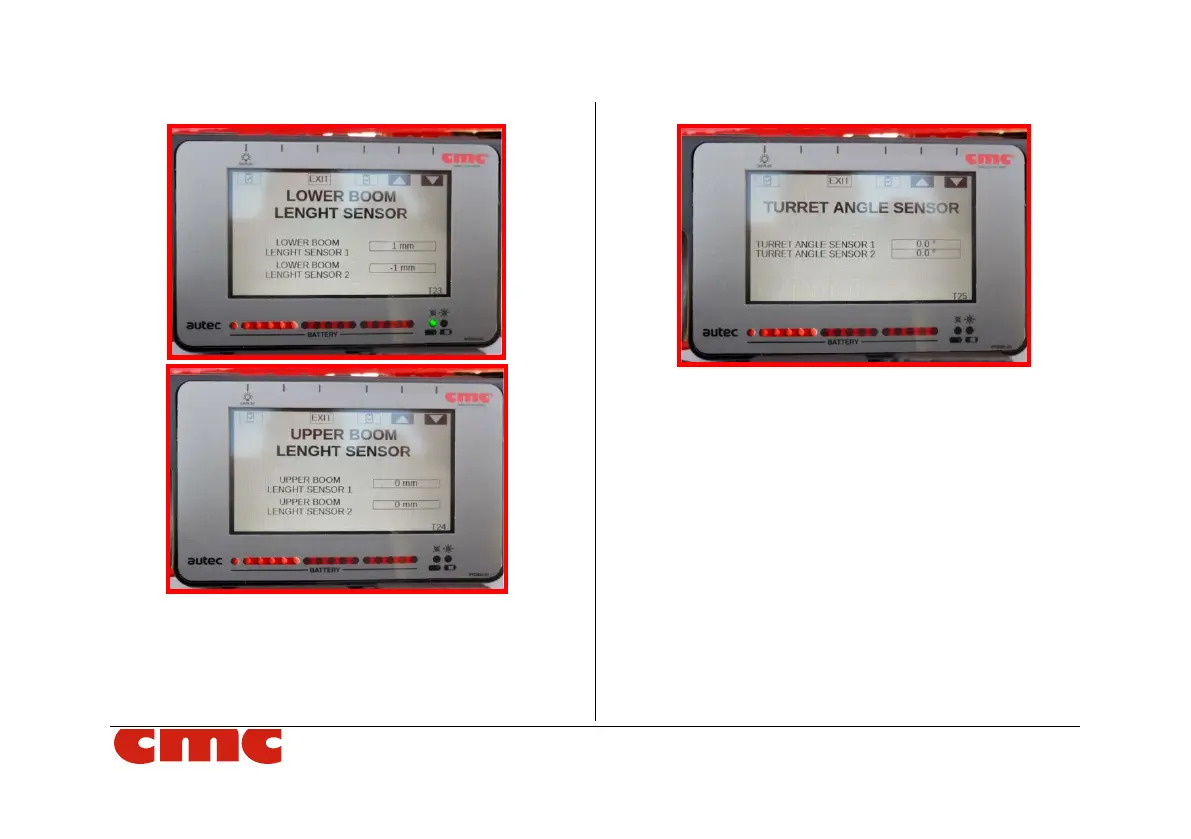

Picture 37: T23-T24 screens.
In T23-T24 screens (Picture 37), there are the values of
the two lower boom length sensors and the two upper
boom length sensors: their sensor calibration can be
reset.
Picture 38: T25 screen.
In the final T25 screen (Picture 38), it could be visualized
the values of the two turret angle sensors: their sensor
calibration can be reset, too.
