MAN.243 Rev.5 ENG - Use and maintenance manual S28 page 49 of 138
WARNING! If you get the machine on a truck,
go up the ramp keeping the drive wheels on
the back in order to increase the motricity.
Use loading ramps with suitable dimensions
and strength. Secure the machine to the truck
plane by couplings on the chassis. Ensure
that the machine is switched off during the
transport.

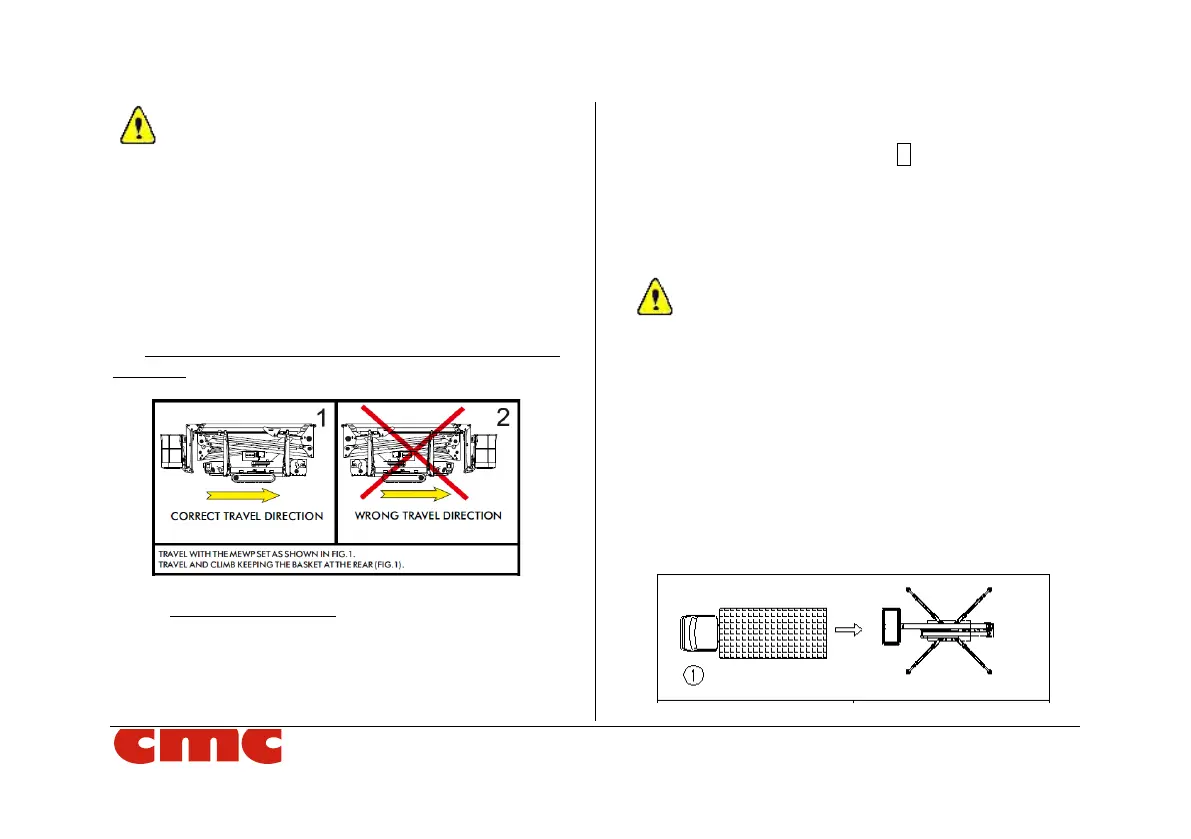

Travel and climb with the MEWP set as shown in Picture
42: the basket shall always be placed at the rear of the
machine.
Picture 42: travel direction on the ground.
1. Use the radio control.
2. Check that the slope approach angle is not
higher than 17° (31%) to avoid damage to
carpentry and that the soil is perfectly clean from
grease, mud, snow or ice.
In order to favor machine load/unload through ramp, with
the MEWP in transport position, even if it is not stabilized,
you can press the parking button P (Picture 16) to:
o lift/lower the jib;
o rotate and level the basket.
4.3.2 Self-loading function
In order to facilitate machine self-loading, it is
advisable to remove the outrigger extensions
(if any). At the end of loading, the extensions
must be included in the closing configuration, and
only then the MEWP can be used.
• Drive and then lock the truck, once the load
position has been reached;
• stabilize the machine (par. 4.4.2) and use the
extensions if present;
• maneuver the truck bringing it from position 1 to
position 2;
