X-System Components
X2 Package Overview
The X2 package for X-System consists
of three cases that provide storage for
the sideline and press box components
of the system. The press box case and
accessory case should be placed in the
applicable press box for your team. The
sideline case should be placed on your
team’s sideline. Further instructions
about setting up your system are
provided in the Game Day Setup section
of this manual on page 5.

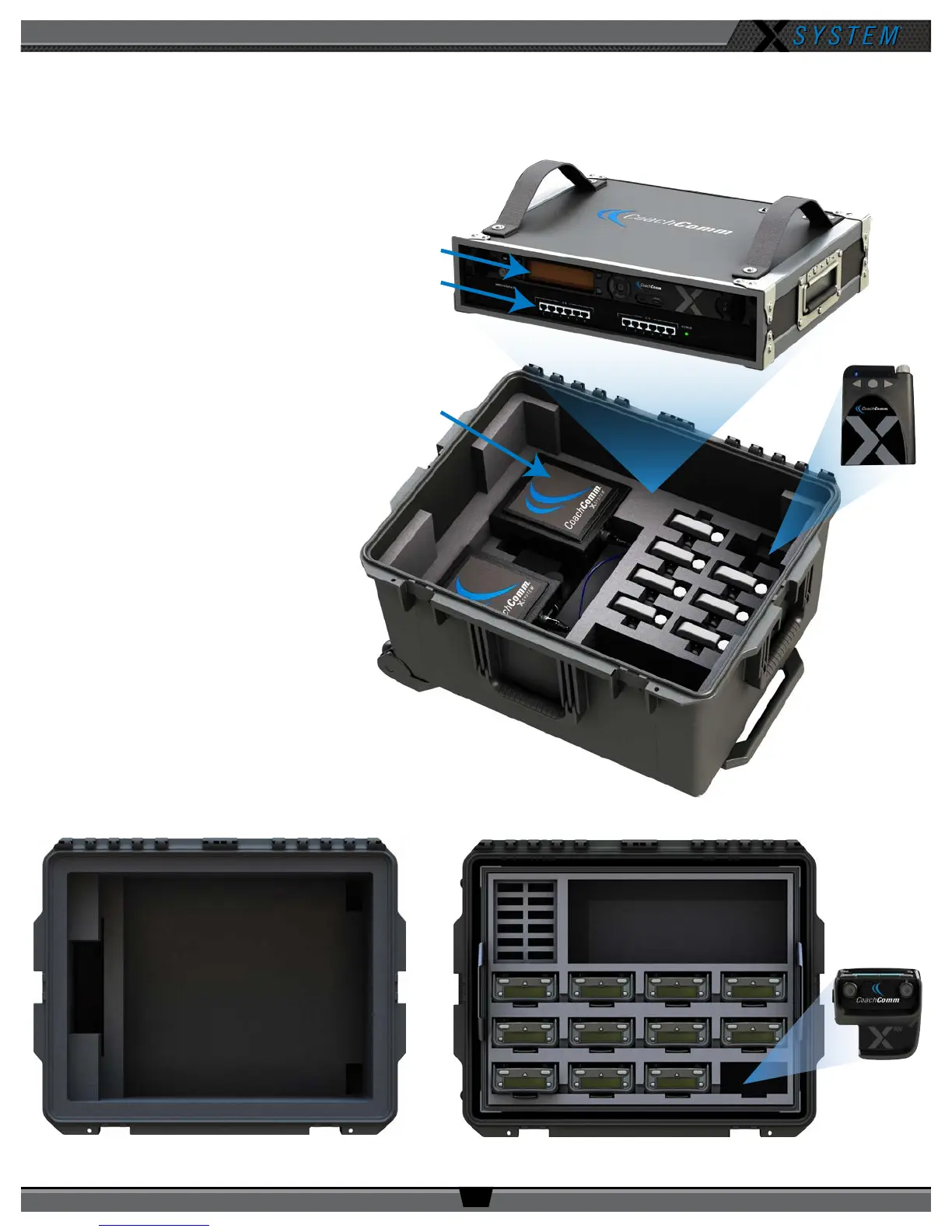

Press Box Rack Unit
Control Unit
Wired Interface
Press Box Case
Field Antennas
with Mounting
Hardware
Wired BeltPack
Accessory Case
Storage for the following:
• 15 ft. Duracat 5 Cable
• 50 ft. Duracat 5 Cable
• 100 ft. Cat 5 Cable
• 25 ft. Bundled Cat 5 Wired
BeltPack Cable
• Booth Coaches’ Headsets
• Booth Antenna and Accessories
(if applicable)
Radio Pack
Sideline Case
Storage for Batteries*,
Chargers, and Power Cords
(Sideline headset storage in bottom)
*Spare lithium batteries are not allowed in
checked airline baggage. Be sure to follow
all air travel rules and regulations when
traveling with your X-System.
