INSTALLATION
4.0 Installation
4-1 Inspection
When you receive the compressor please inspect it closely.
Upon delivery, carefully check the compressor for damage
during transportation.
If goods are received in damaged condition, it is important
that you notify the carrier and insist on a notation of loss or
damage across the freight bill.

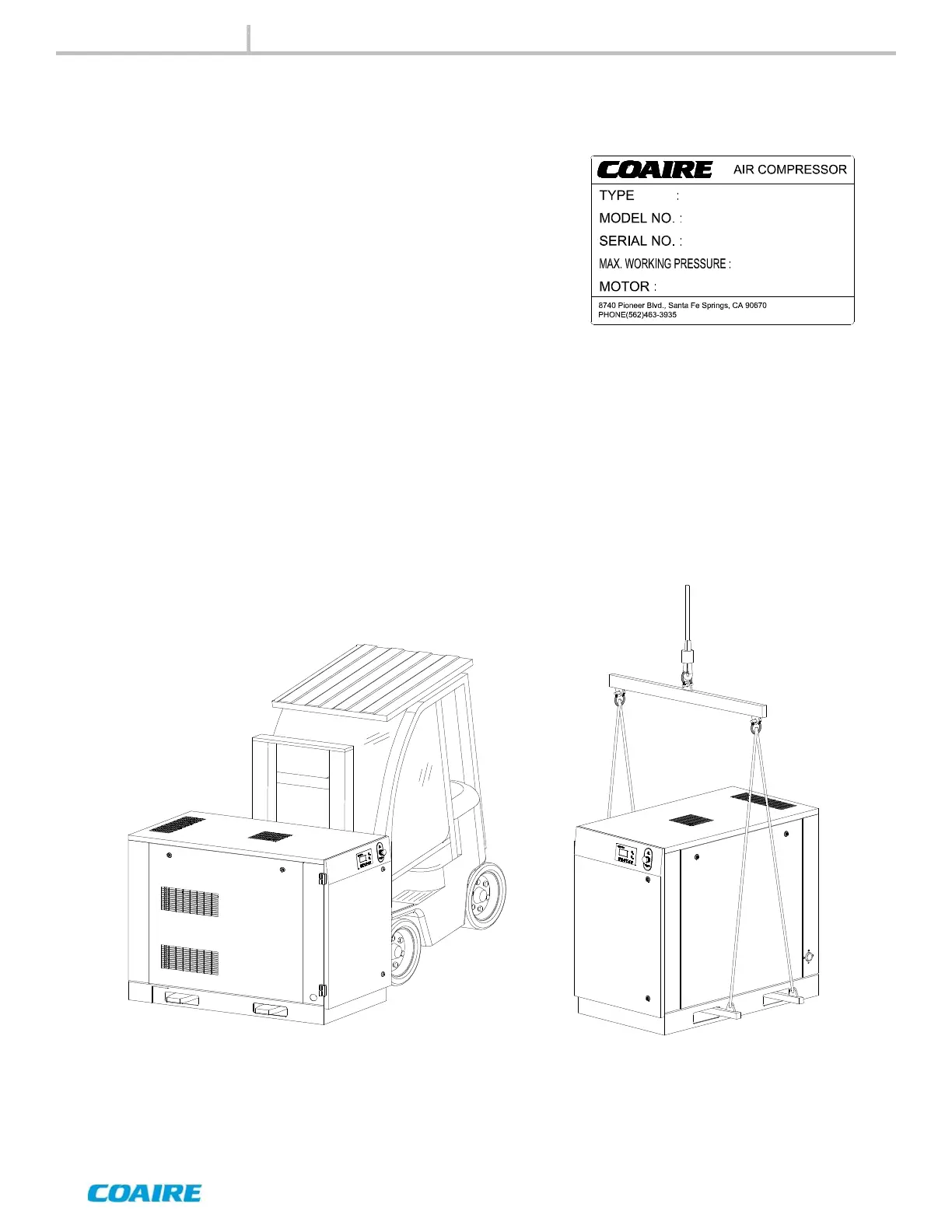

[ Fig.4-1 ] Name plate
4-2 Handling
4-2-1 Handling by a forklift
When handling by a forklift, make sure that forks completely extend through the width of the unit. (Fig.4-2)
4-2-2 Handling by a shop crane
When handling by a shop crane, use the openings provided on common base where slings or steel wire
ropes can be use for lifting. (Fig. 4-3)
[ Fig.4-2 ]
[ Fig.4-3 ]
