3-2 Major Component
3-2-1 CSOF-M3PL(H), CSOF-M5PL(H)
#. DESCRIPTION
1. COMMON BASE
2. COVER & FRAME
3. AIREND
4. MOTOR
5. MOTOR PULLEY
6. AIREND PULLEY
7. SUCTION FILTER
8. AIR RECEIVER TANK
9. AIR DELIVERY PIPE
10. AIR COOLER
11. COOLING FAN
12. CONTROLLER
13. CONTROL BOX
14. V-BELT
15. CHECK VALVE
16. SAFETY VALVE
17. DRAIN VALVE
18. PRESSURE TRANSMITTER
GENERAL

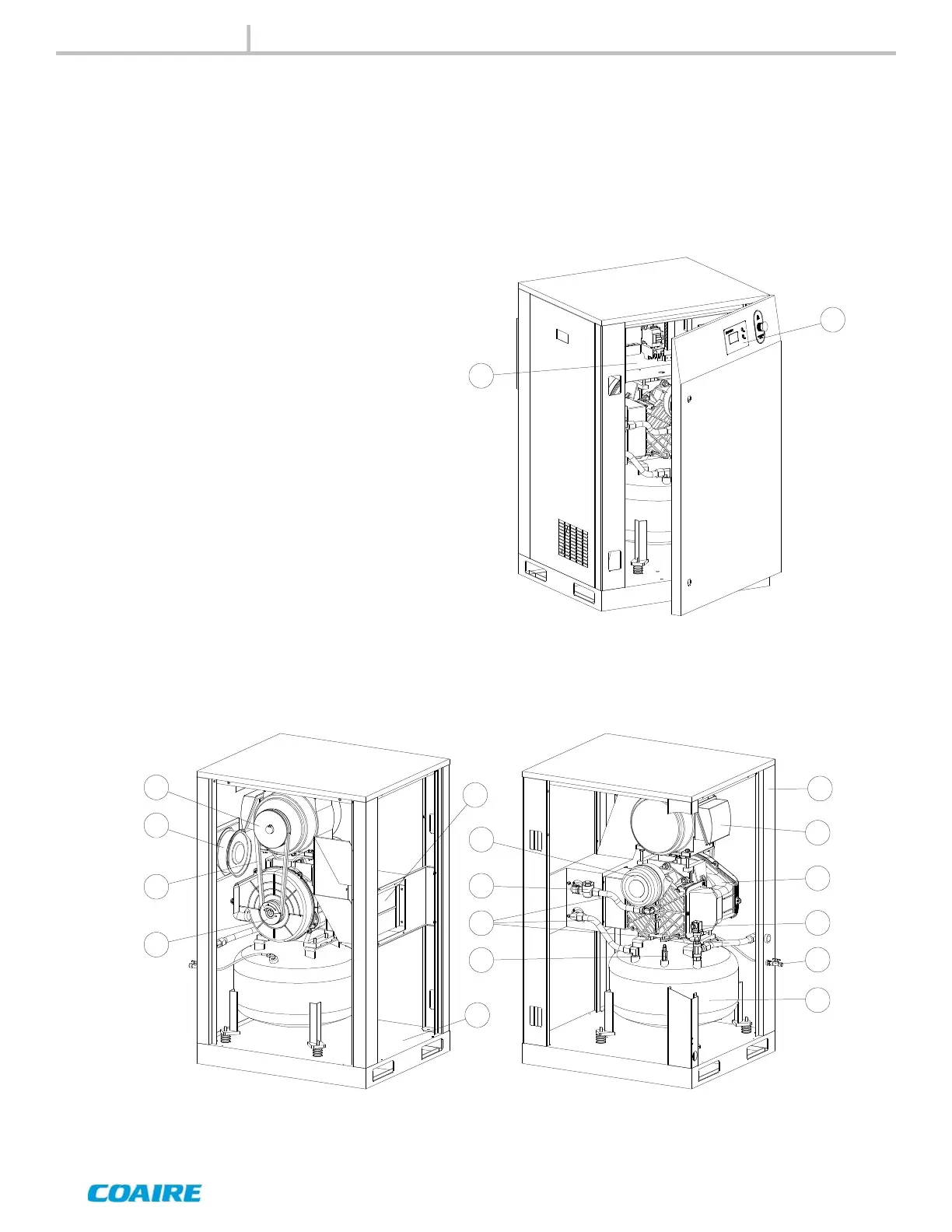

[ Fig.3-1 ] Outline View
[ Fig.3-3 ] Rear View
[ Fig.3-2 ] Front View
12
13
1
10
11
5
14
6
2
3
7
4
8
18
17
15
16
9
