4-3 Installation
4-3-2 Ventilation
4-3-1 Where to Install
Poor ventilation in the compressor room may raise the temperature of the air discharged.
If the room temperature exceeds 18 more than the outside temperature, sufficiently ventilate
the air in the room(see Table 4-1), and install the exhaust duct, if necessary.
Coaire air compressor is designed for the indoor use. The ventilation facility and piping affect
the performance and the service life of the compressor. Please follow the instructions in the user’s manual.

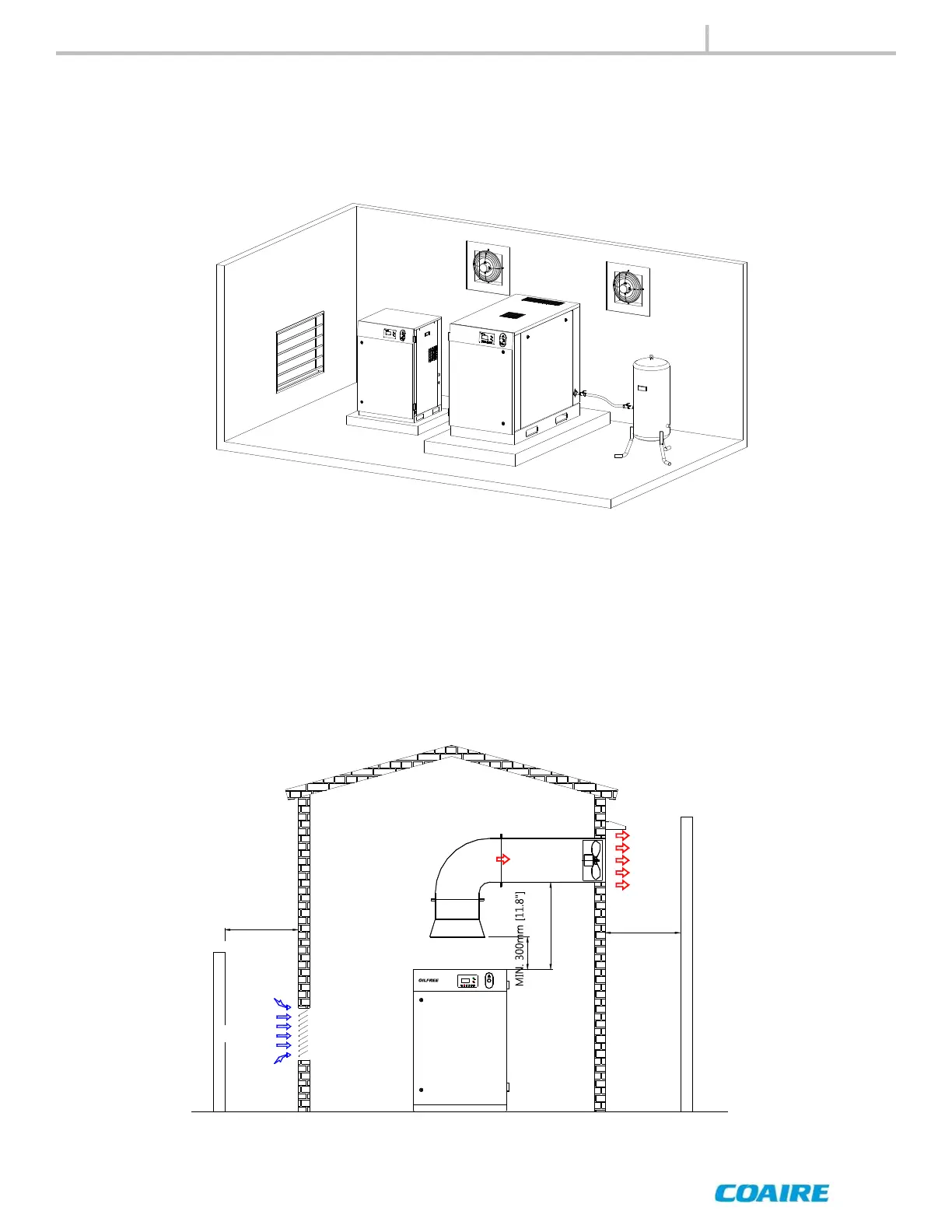

[ Fig.4-4 ] Installation of the Air Compressor
INSTALLATION
MIN. 1000mm [39.4"]
MIN. 1500mm [59"]
MIN. 2000mm [78.8"]
Max. V=3m/s
Max. V=5m/s
EMERGENCY
STOP
[ Fig.4-5 ] Installation of the Exhaust Duct
