Coaire SCROLL CSOF-M3PL/H12 - Outline Drawings; CSOF-S8 PL(H);S10 PL(H Dimensional Drawing

42
10-2 CSOF-S8PL(H), CSOF-S10PL(H)

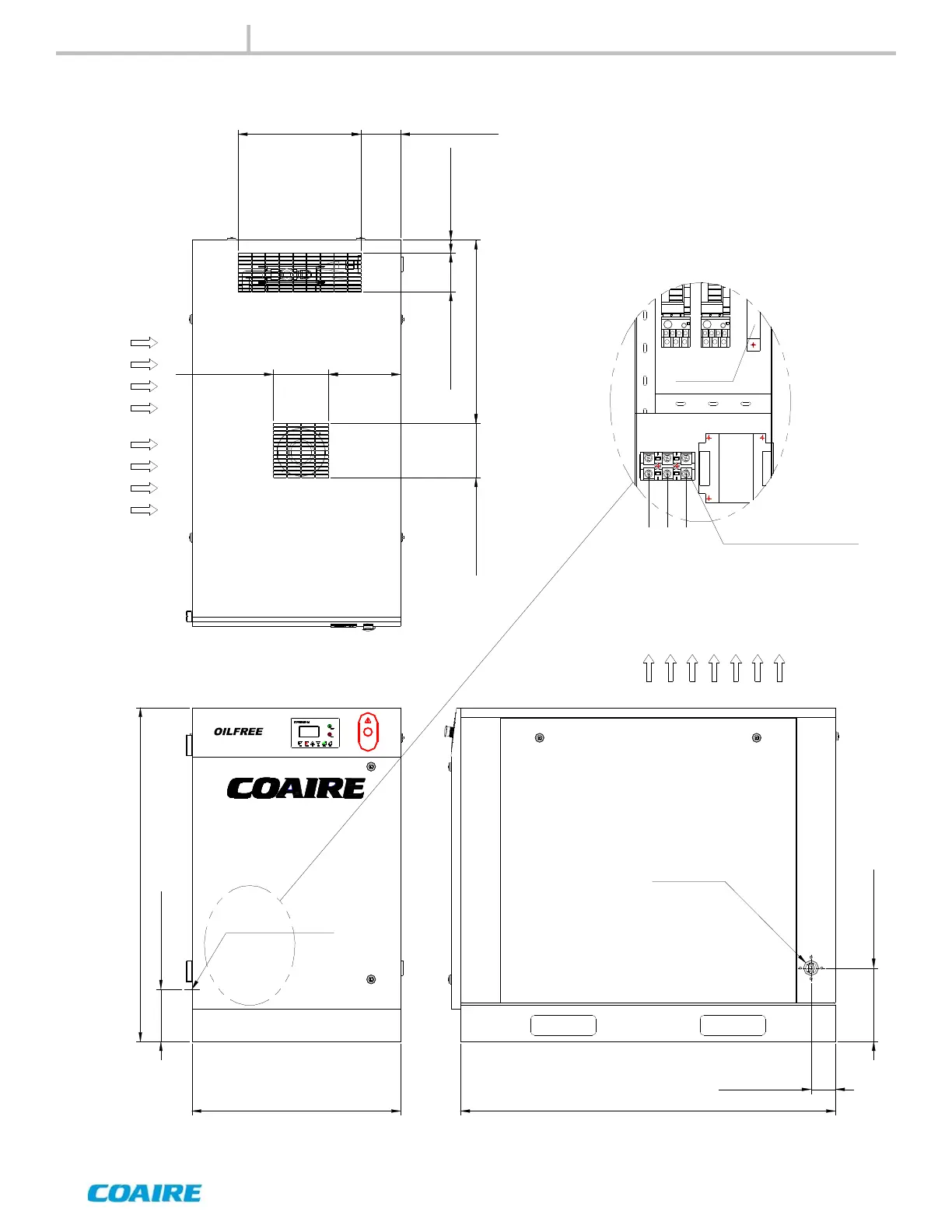

OUTLINE DRAWINGS
EXHAUST AIR OUTLET
AIR OUTLET
PS 25A(PS1")
1150mm [45.3"]
75mm [3"]
225mm [8.9"]
AIR INTLET
118mm [4.6"] 40mm [1.6"]
122mm [4.8"]376mm [14.8"]
166mm [6.5"]
169mm [6.7"] 221mm [8.7"]
560mm [22"]
640mm [25.2"]
MAIN POWER INLET
160mm [6.3"]
1020mm [40.2"]
EMERGENCY
STOP
R S T
Ground
Main Terminal block
