7-3-8 Menu level
7-3-7 Menu structure and navigation

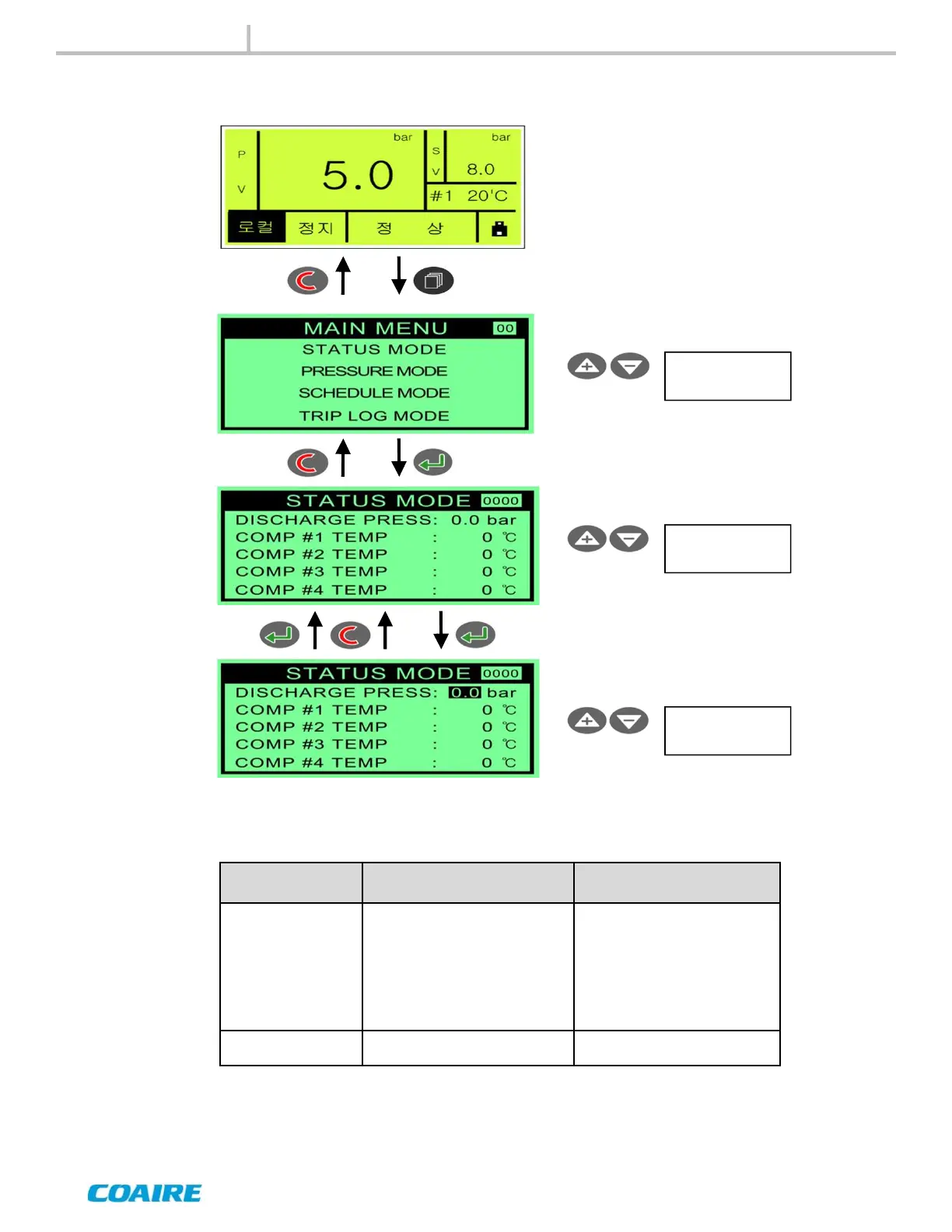

[Fig.7-3 ] Menu structure and navigation
Main Menu
Select
Sub Menu
Select
Parameter
Adjustment
ACCESS LEVEL USER (CODE = 0000) SERVICE 1 (CODE = 0100)
ACCESS-ABLE
MENU
00. STATUS MODE
01. PRESSURE MODE
02. SCHEDULE MODE
03. TRIP LOG MODE
04. TRIP SET
05. OPERATION SET
06. COMP SET
07. CONFIG MODE
00. STATUS MODE
01. PRESSURE MODE
02. SCHEDULE MODE
03. TRIP LOG MODE
04. TRIP SET
05. OPERATION SET
06. COMP SET
07. CONFIG MODE
08. FACTORY SET
TIMEOUT PERIOD 1 MINUTE 10 MINUTE
Press “MENU” button for a seconds in status mode, an access code entry display (Fig. 7-4) is shown.
Use “PLUS” button to adjust value then press “ENTER“ button. If the access code have been entered to
authorized, menu page will be displayed. An invalid code will return the display to normal operation mode.
