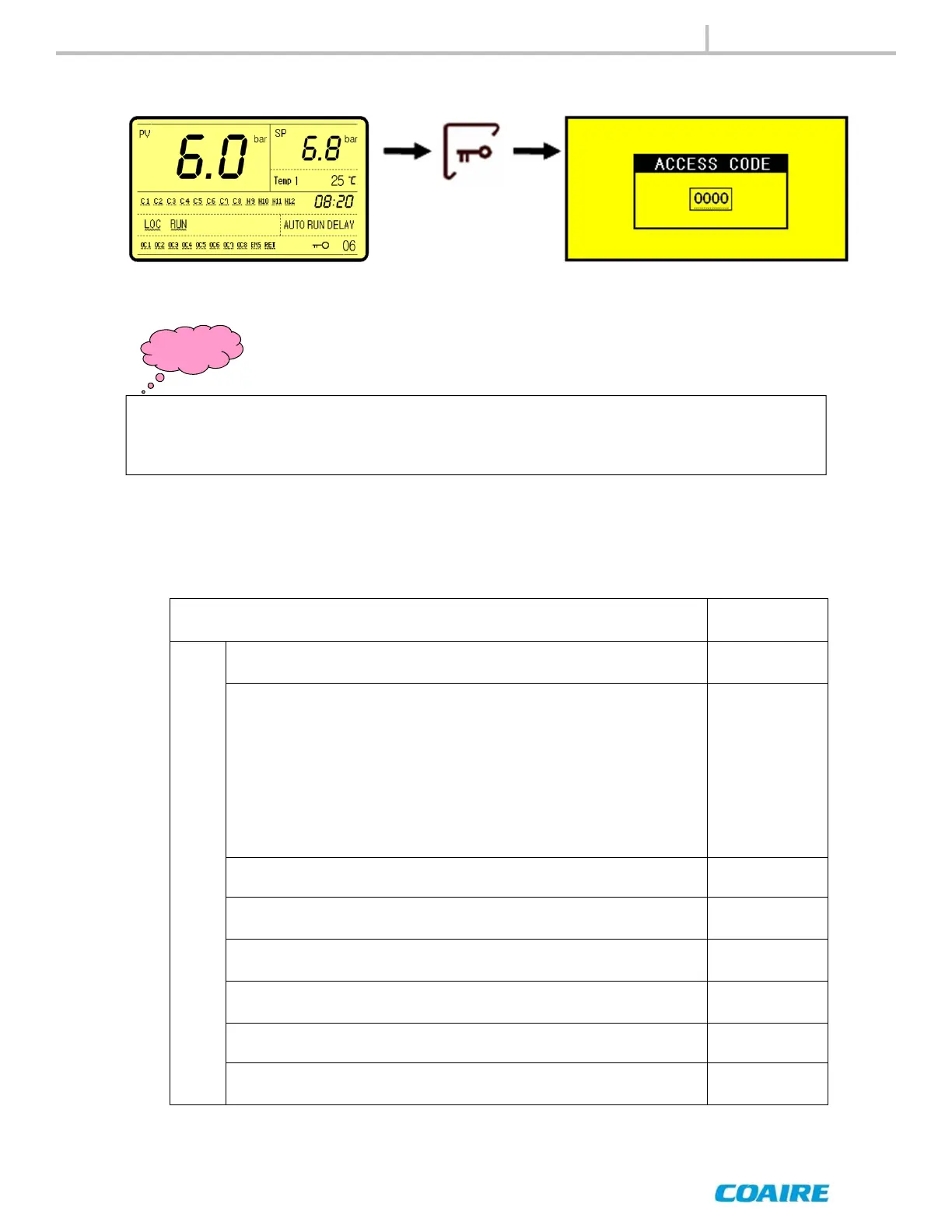

[ Fig.7-4 ] ACCESS CODE ENTRY DISPLAY
NOTE
1) When access level is “SERVICE 1”, [Equipment Environment Setup] menu cannot be adjusted.
2) Press “CANCEL” button for three seconds at any time to return to the system locked condition.
ACCESS CODE ( 0100 ) Editable
M
E
N
U
S
T
R
U
C
T
U
R
E
1. . STATUS MODE ×
2. . PRESSURE MODE
- TARGET PRESSURE
- STEP#1~STEP#2 START PRESS
- STEP#1~STEP#2 STOP PRESS
- LCD LIGHT MODE
○
×
×
×
3. SCHEDULE MODE ×
4. TRIP LOG MODE ×
5. TRIP SET ×
6. OPERATION SET ×
7. COMP SET ×
8. CONFIG MODE ×
