10-1 CSOF-M3PL(H), CSOF-M5PL(H)

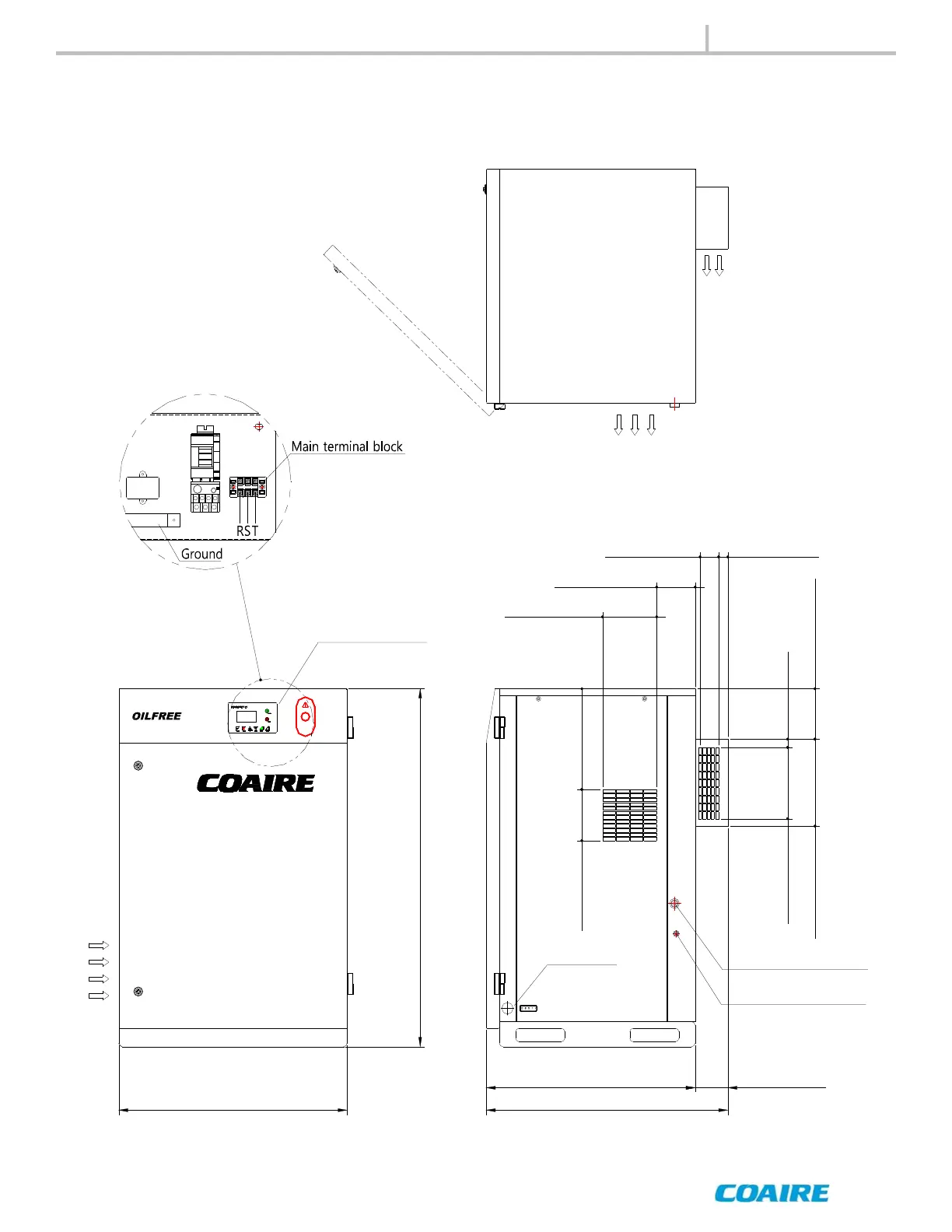

10.0 Outline drawings
OUTLINE DRAWINGS
WATER DRAIN (1/4")
AIR DISCHARGE (1/2")
640mm [25.2"]
700mm [27.6"]
POWER IN
CONTROLLER
EXHAUST AIR OUTLET
(COOLING FAN)
EXHAUST AIR OUTLET
(SIROCCO FAN)
166mm [6.5"]
118mm [4.6"]
57mm [2.2"] 28mm [1.1"]
213mm [8.4"] 25mm [1"]
150.5mm [5.9"]260mm [10.2"]
100mm [3.9"]
740mm [29.1"]
1070mm [42.1"]
EMERGENCY
STOP
301mm [11.9"]153mm [6"]
