35

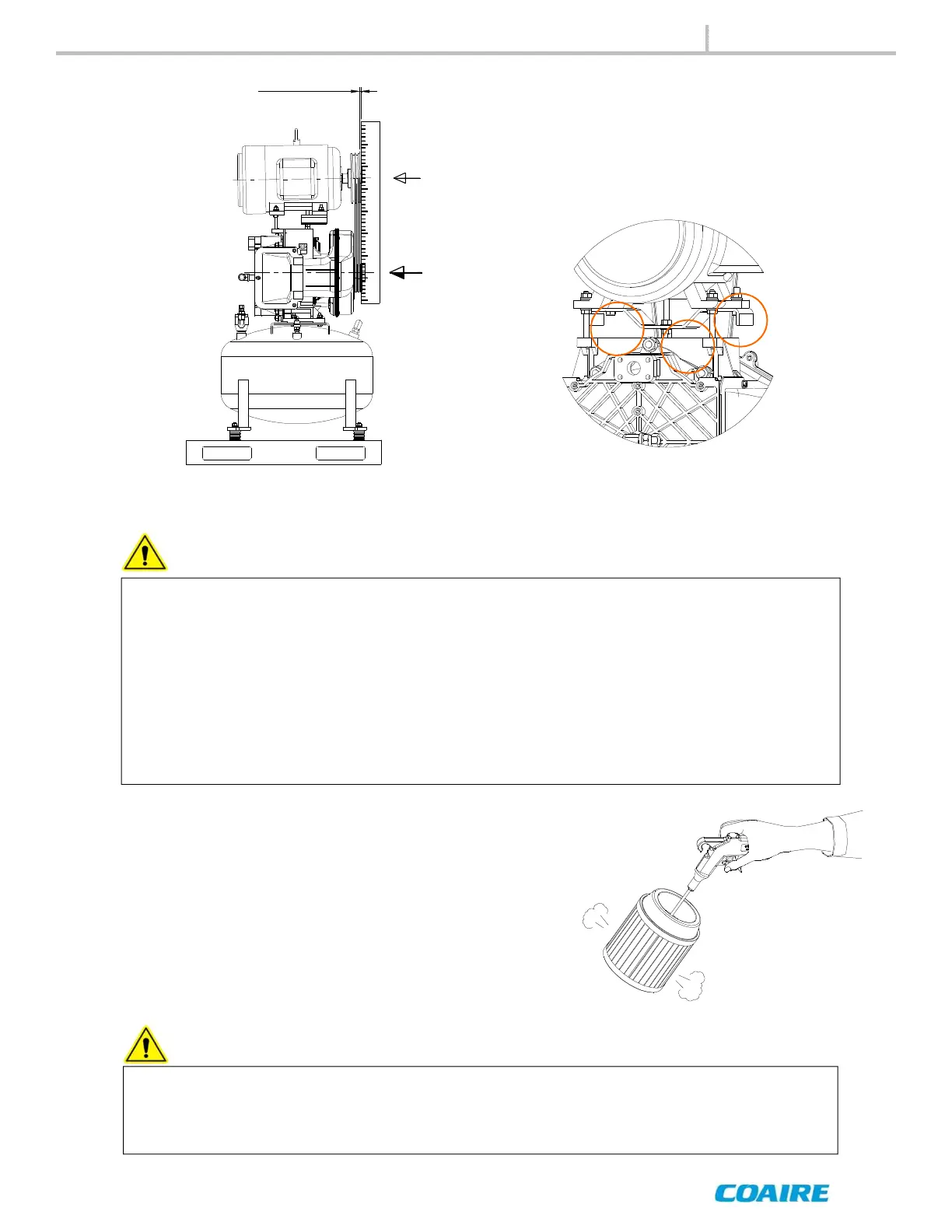

[ Fig.8-8 ] Suction filter cleaning
Below 0.04inch
FIXED SIDE
ADJUSTED SIDE
AIREND
MOTOR
[ Fig.8-6 ] Belt Align
[ CSOF-M3PL(H),CSOF-M5PL(H) ]
[ Fig.8-7 ] Belt Tension Settle
[ CSOF-M3PL(H),CSOF-M5PL(H) ]
1) An air compressor is automatically operated. Do not check and replace the belt until the
compressor is stopped and the main power is turned off.
2) Only use the belt specified by Coaire for a replacement. Do not use old and new belts mixed, and
replace the entire set of belts all at once.
3) The shaft is damaged and the service life of the bearing is shorten at a high tension of the belt,
while the belt is slippery at a low tension of the belt. Always keep the optimal tension value with
reference to the [Table 8-1].
Caution
8-3-5 Cleaning the Suction Filter
1) Check the contamination level every 500 hrs.
2) Replace the heavily contaminated filter even before the
replacement period.
3) Blow the element with the compressed air outward, and
then by the side.
4) Keep dust and foreign substances out of the compressor
during the assembly.
Caution
A suction filter significantly affects the service life of an airend. Make sure to use only the genuine
Coaire suction filter. Coaire cannot be responsible for any damage caused by an improper
replacement.
MAINTENANCE
