5.1.1 Connect the Computer to the Repeater
1. Connect the supplied Ethernet cross-cable from the computer to the Repeaters’ front panel.
ATTENTION! Do not connect the Repeater ETH port to the network. It may affect your network!
Remote management is available only via a DMCU.

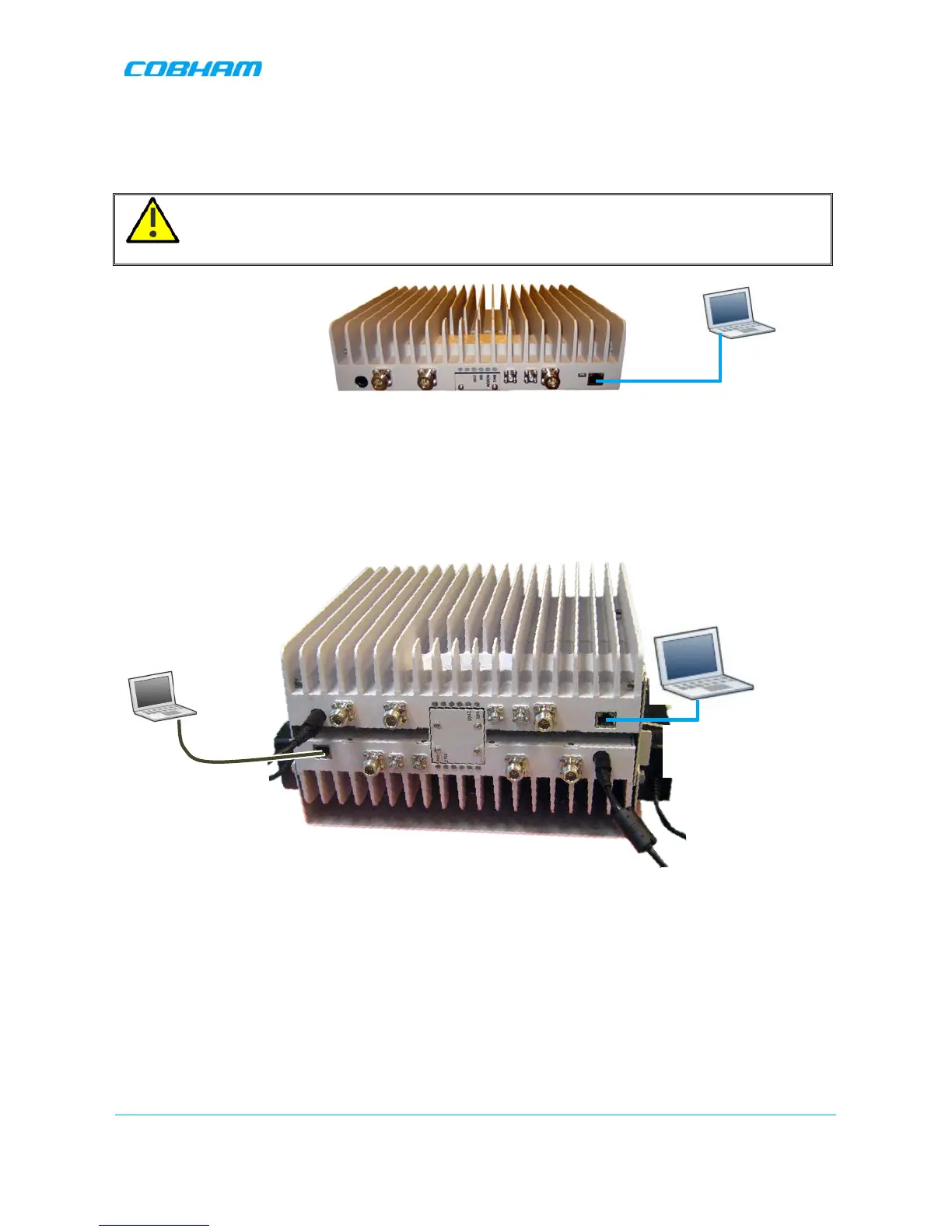

Figure 5-1. Ethernet Connection to a Single DIGImini Repeater
2. If connecting to the Quad-band assembly, connect the cable to
any
of the two repeaters. The Web GUI
will allow for configuration of both repeaters.
Figure 5-2: Cascaded DIGImini Quad-band
