4. Verify that the Repeater is firmly mounted and
tighten the Repeater bolts so it is secured to the wall
mount bracket.
5. To mount the Repeater Power Supply:
• Pass two ties through the loops at the side of the bracket.
• Position the PS on either side of the bracket, firmly on the step and secure the power supply to the
bracket using the ties.
• Trim the ties
WARNING!!! Do NOT connect power at this point.

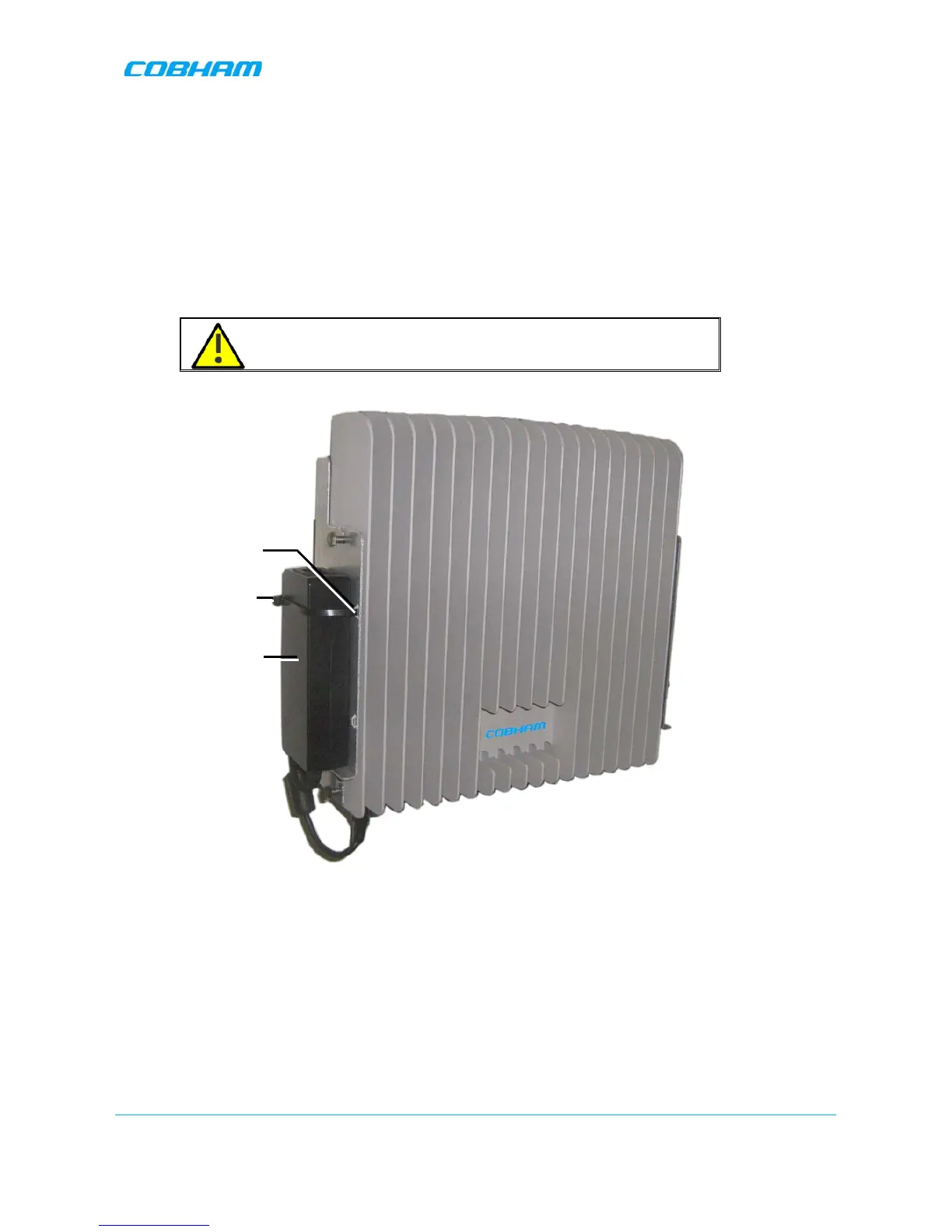

Figure 3-4. Mounting Power Supply
3.5 Before Connecting the Antennas or Power
Before connecting the antennas or power perform the following procedures described in this section:
• Verify isolation between the donor and mobile antennas
• Verify link between the BTS and the Repeater
1. Pass ties
through loops
2. Position P.S.
firmly on step
and
secure with ties
3. Trim ties
