DIGIMINI AMERICAS REPEATERS
PRODUCT DESCRIPTION AND USER’S MANUAL
Cobham Wireless – Coverage Date: 6-Jul-17 www.cobham.com/wireless
Document number: 00031UM Rev. 6.3
Page |4-13
4.5.3 Connect SMA Jumper Cables
Connect SMA N-type jumper cables between Combiners and Repeater antenna ports according to
the illustration below:
NOTE: Be sure to use recommended Torque value.
Jumper Type Connect Between
Short (170mm) Connect between connectors labeled
1
(i.e
1 to 1
)
Short (170mm) Connect between connectors labeled
4
(i.e
4 to 4
)
Long (340mm) Connect between connectors labeled
2
(i.e
2 to 2
)
Long (290mm) Connect between connectors labeled
3
(i.e
3 to 3
)

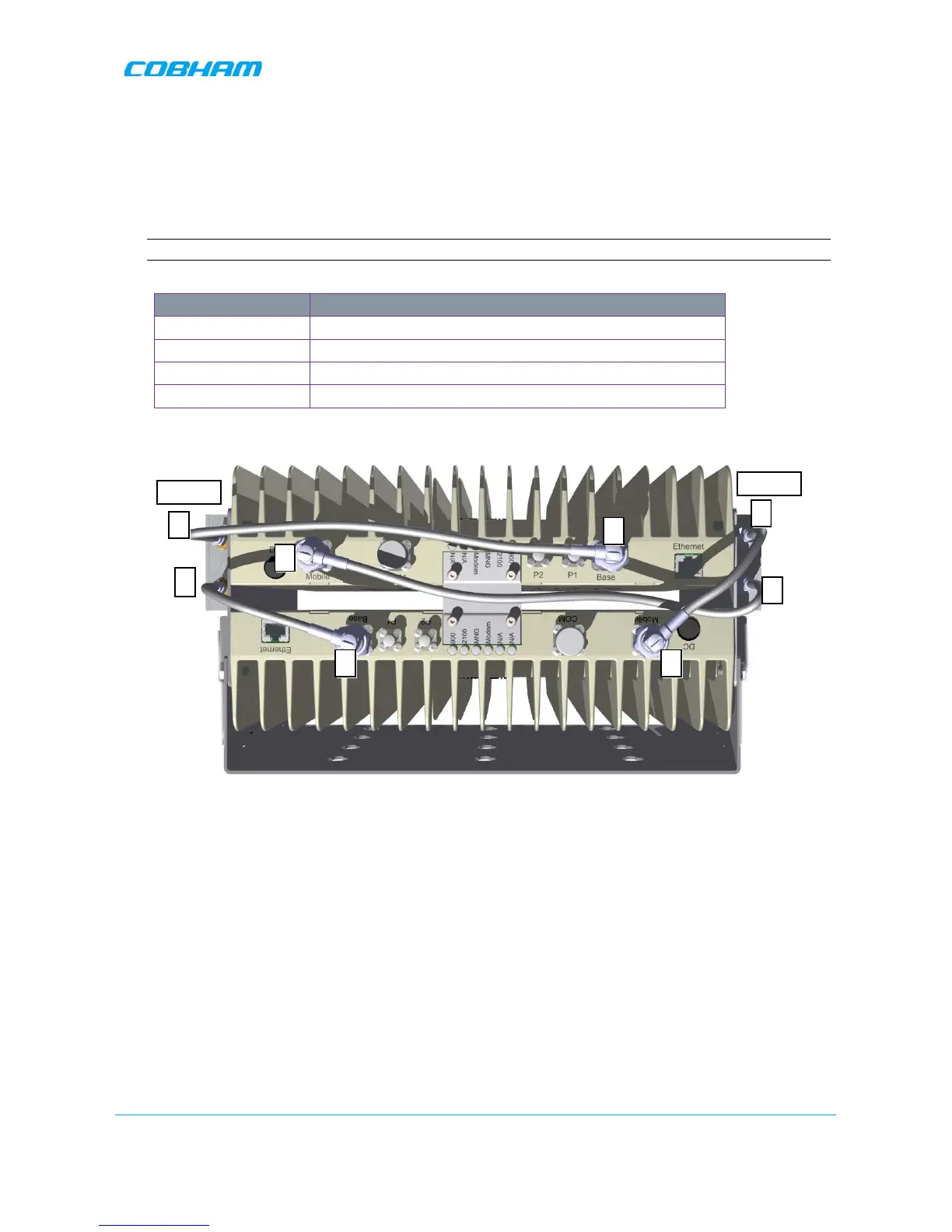

Figure 4-16. DIGImini Quad-Band Jumper Connections
