4.5.4 Mount and Secure Quad-Band Assembly
1. Referring to the following figure:
•
Carefully and securely pick
up the assembly.
• Hang the assembly on the wall bracket, fitting the
looser
wall-side Repeater Side Bracket screws
on the wall bracket.
• Tighten the loose screws on each side.

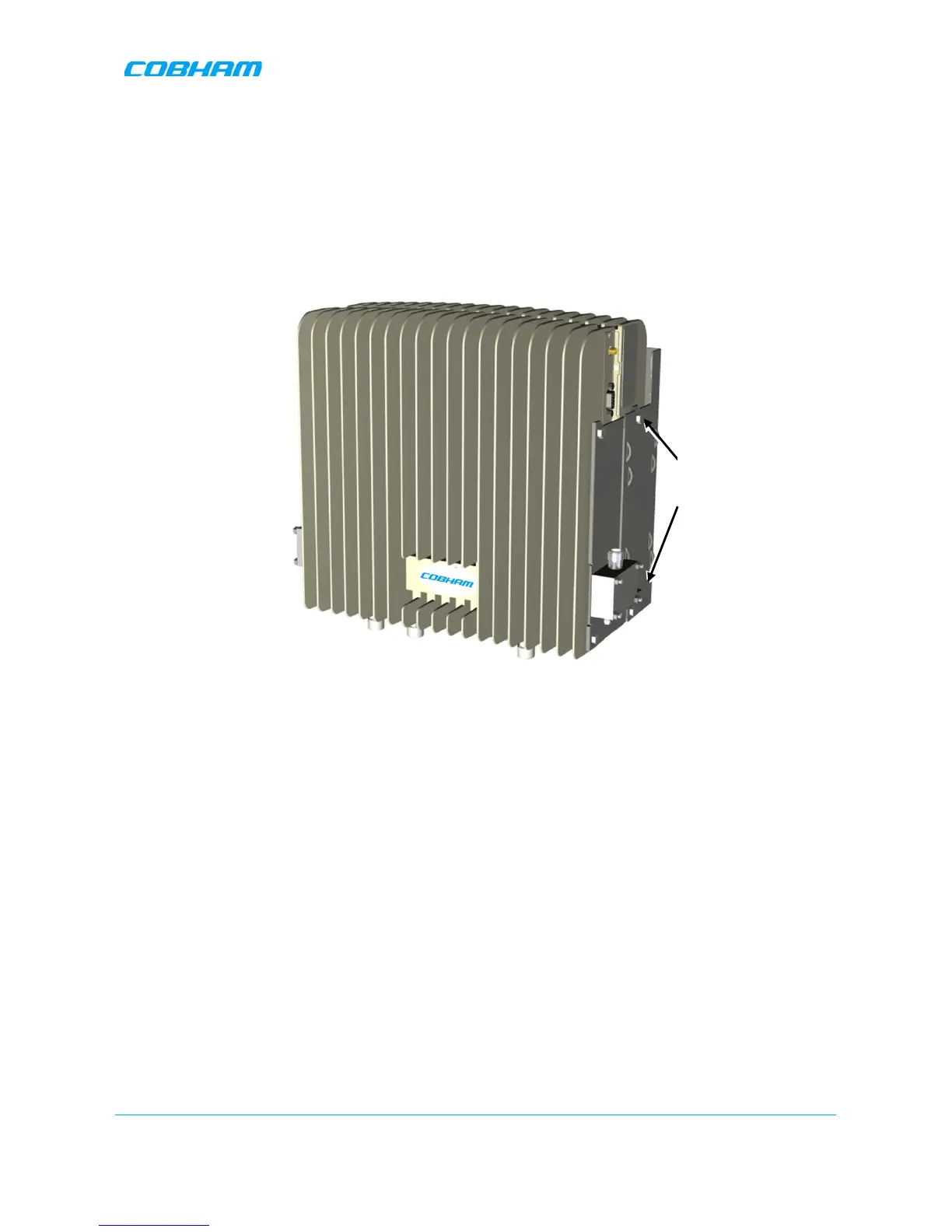

Figure 4-17. Mount Quadband Assembly on Wallbracket
