DIGIMINI AMERICAS REPEATERS
PRODUCT DESCRIPTION AND USER’S MANUAL
Cobham Wireless – Coverage Date: 6-Jul-17 www.cobham.com/wireless
Document number: 00031UM Rev. 6.3
Page |4-15
2. Two Power Supplies should be assembled on the wallbracket (one on each side of the
assembly). Mount one (if this is an upgrade and one is already mounted) or both (if this is a new
installation) as follows:
• Thread two ties through the loops in the bracket.

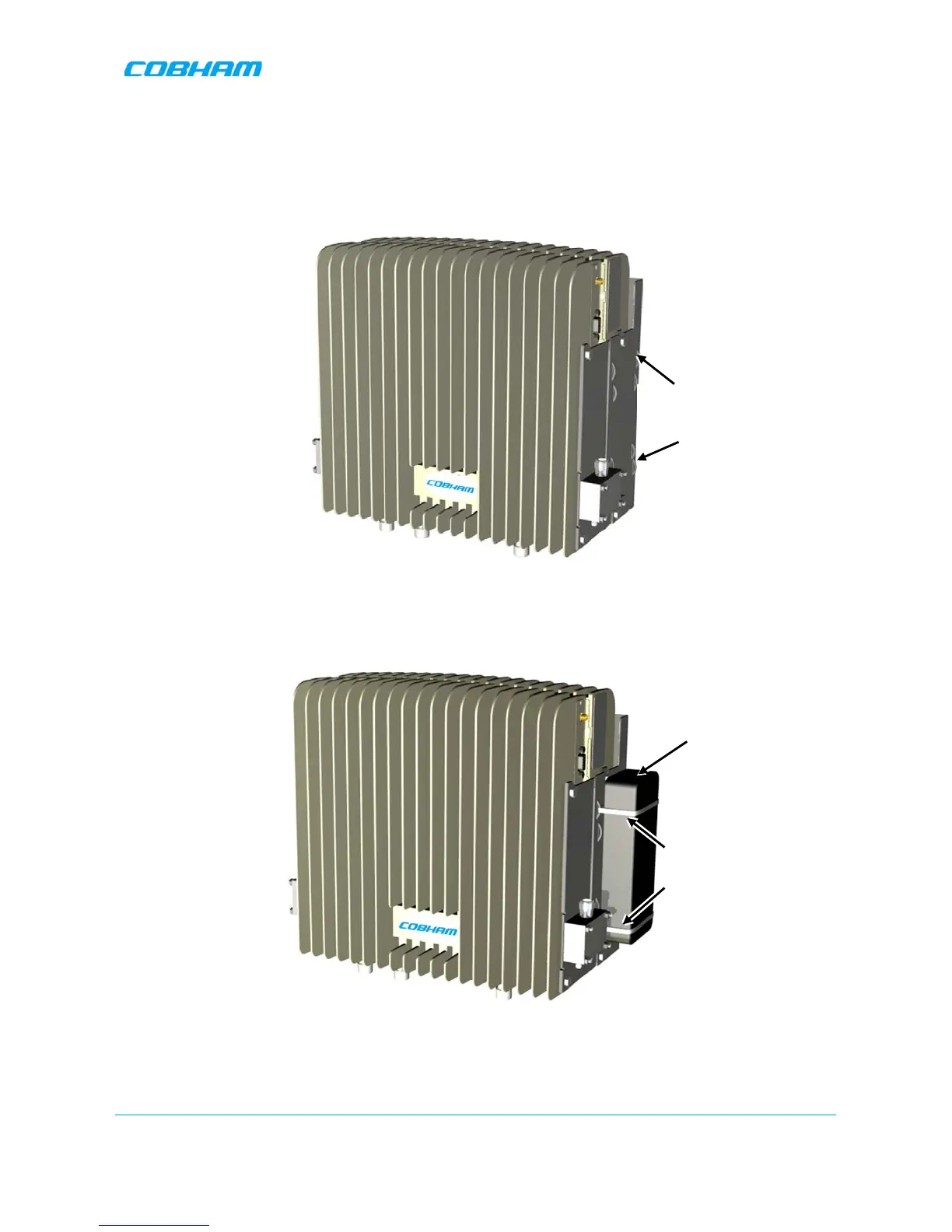

Figure 4-18. Insert Ties for Securing Power Supply
• Fit Power Supplies on ridge(s) on side of wallbracket.
• Secure the ties.
,
Figure 4-19. Secure Power Supply
Thread x2 ties through
loops (1x on bottom and
1x on top)
Ties
AC/DC
Converter PS
To Next Page
