Antenna dimensions
98-145510-E Appendix A: Technical specifications A-12
A.8 Antenna dimensions
A.8.1 EXPLORER 8100
The dimensions shown here are in millimeters, with inches shown in brackets.

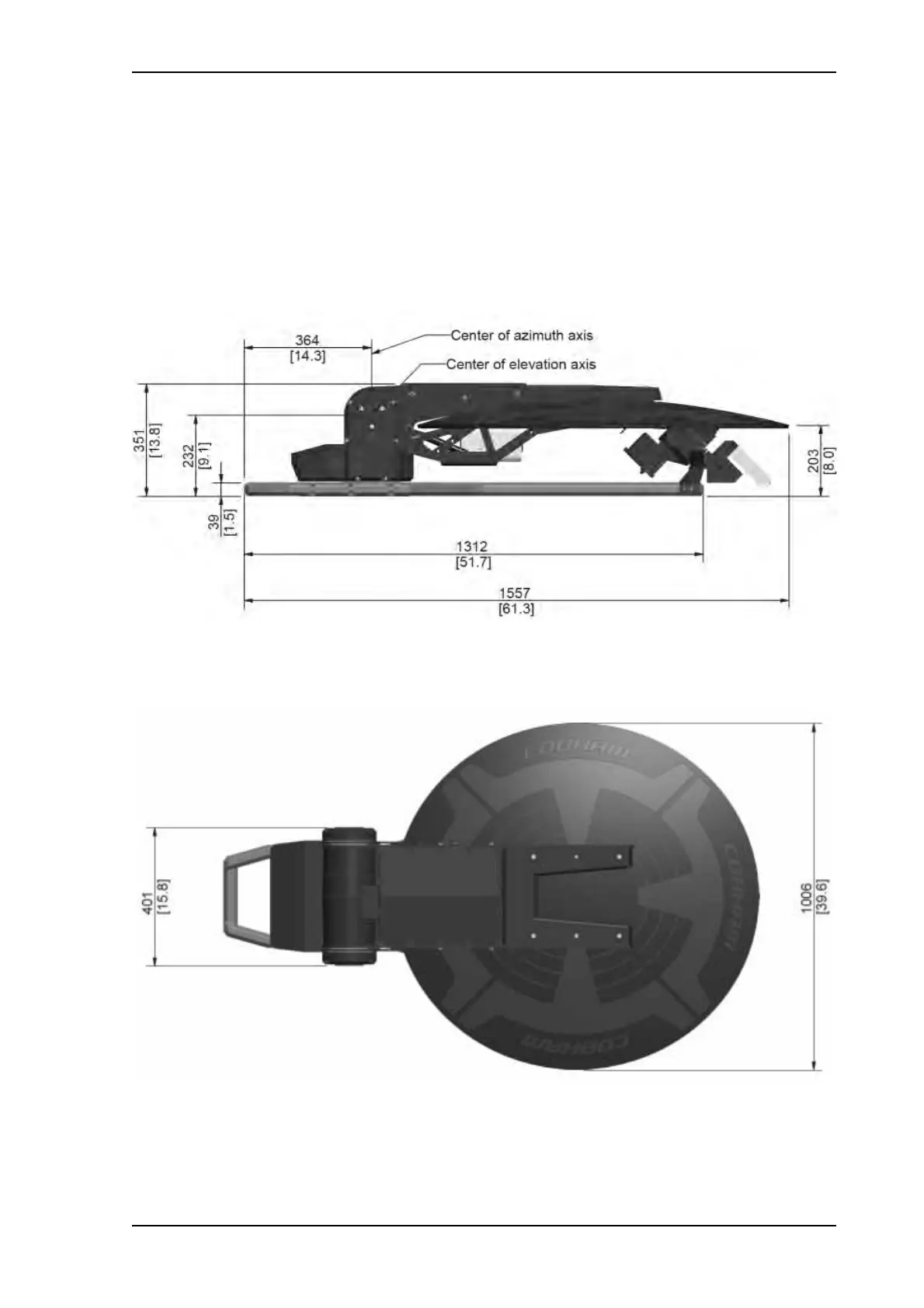

Side view (stowed)
Top view (stowed)
Figure 13: EXPLORER 8100 antenna: Side view (stowed)
Figure 14: EXPLORER 8100 antenna: Top view (stowed)
