OpenAMIP setup for iDirect iNFINITI & Evolution
98-145510-E Appendix C: VSAT modem settings C-12
C.1.3 Configuration example (OpenAMIP)
Examples of modem profile and satellite configuration from the ACU web interface are
shown in the figures below.
Simple OpenAMIP protocol in iDS 8.0.2.7 is NOT
supported by the EXPLORER 8000 series.
Full OpenAMIP protocol from iDX 2.0 and up is supported by the EXPLORER 8000 series.
OpenAMIP protocol version 15 (iDX 3.2): The option file content in some categories has
changed:
• Using console command "options set" is not possible.
• command "tx freq" cannot be used.
• editing the option file must be done manually.

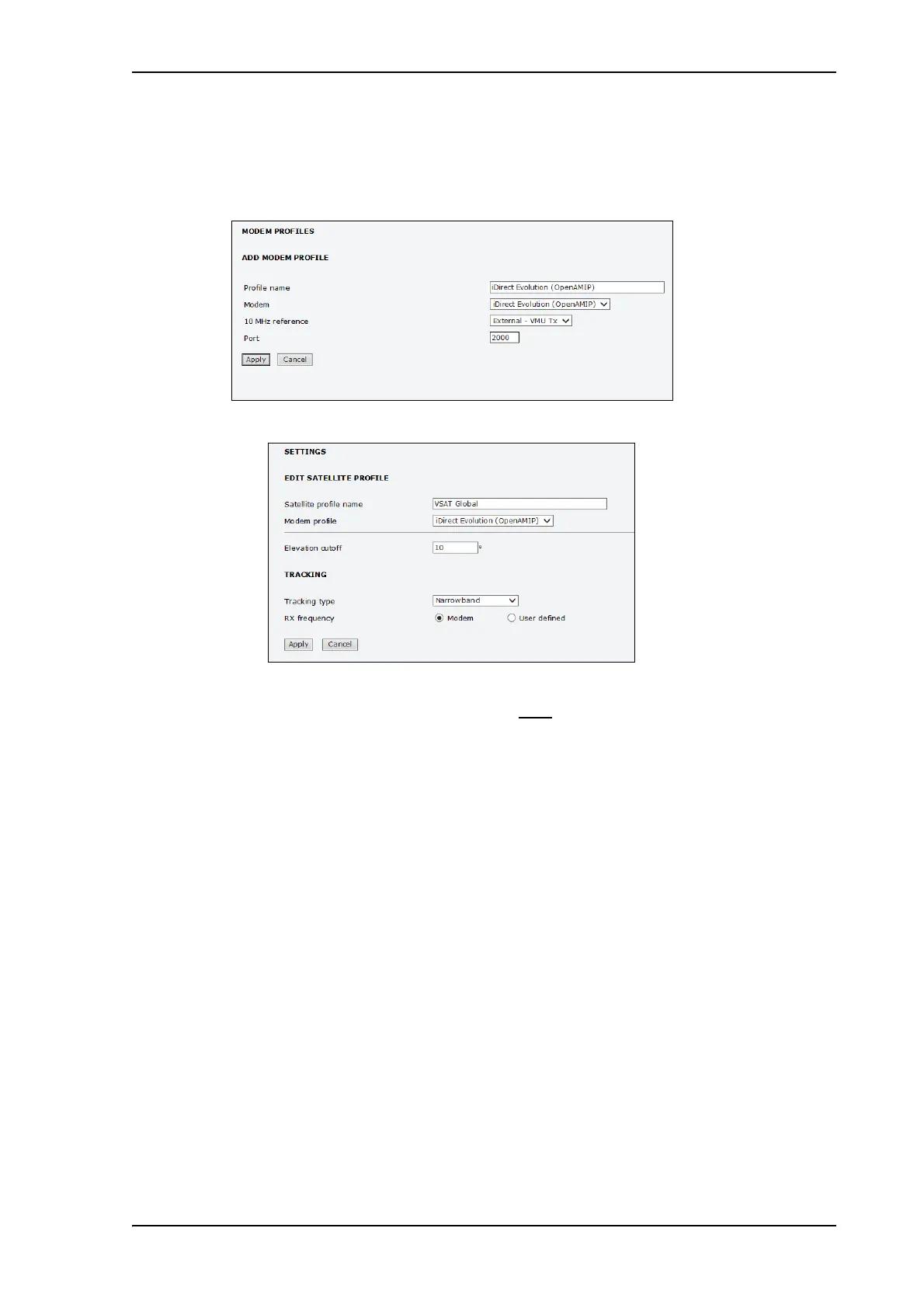

Figure 9: Modem profile, OpenAMIP (example)
Figure 10: Satellite profile, OpenAMIP (example)
