Chapter 1: Introduction
2 General description
Data sessions and voice calls
The SAILOR 4300 L-Band System provides up to 3 IP voice calls and data
sessions for multiple users simultaneous.
The BDU has three user LAN ports for user data traffic, voice and data. The
data session activation can be set to automatical or manual mode. The BDU
has a DHCP server with a configurable start/end range of IP addresses for
user devices. Also it includes port forwarding with up to 8 configurable
forwarding rules for UDP and TCP protocols.
The BDU communicates directly with SIP phones on any of the three LAN
user ports (LAN 2, 3 or 4).
To set up a VoIP phone see To connect a PC and SIP phone on page 7.

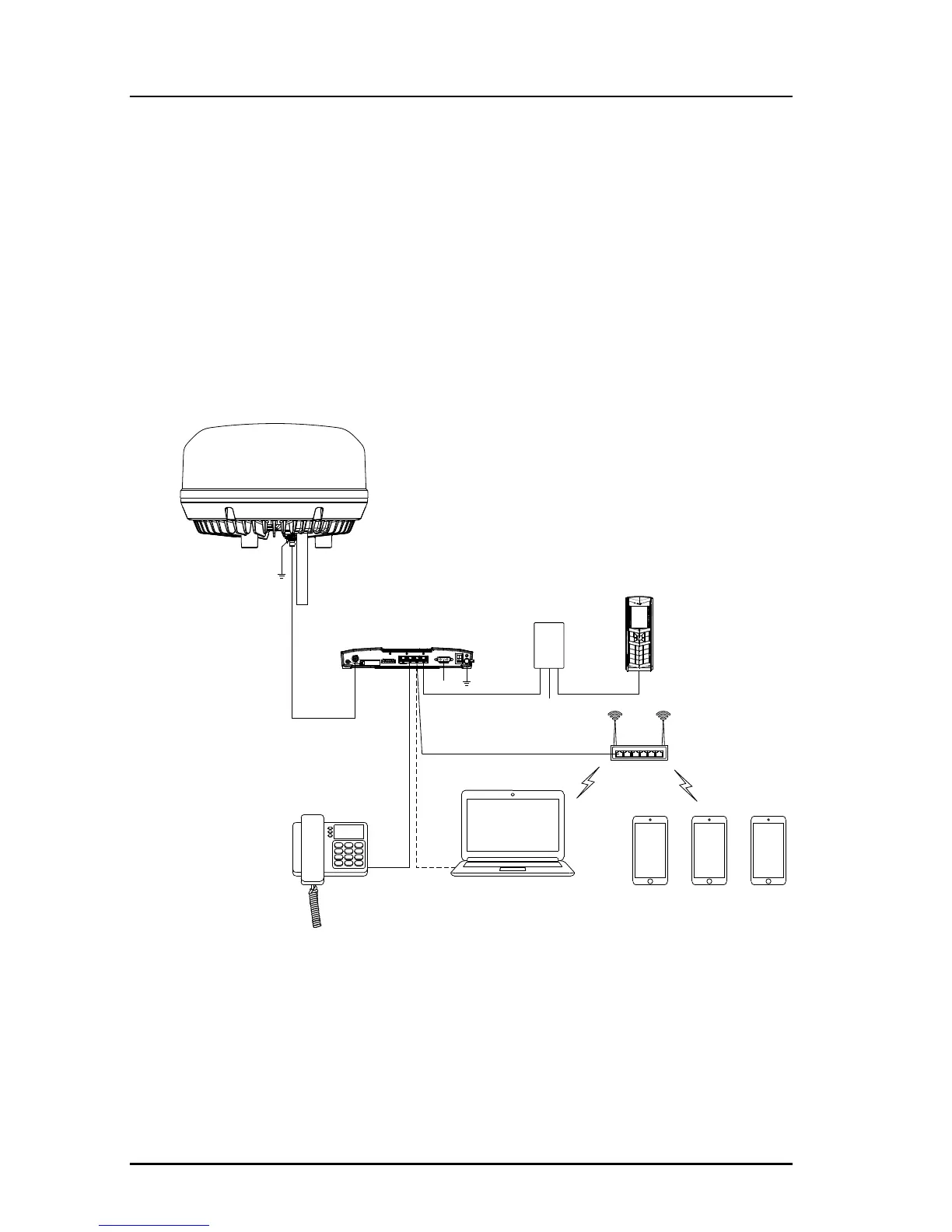

Power
Terminal
Antenna
Power
I/O
LAN
Service
Reset
Antenna
DC-Input 12-24 VDC; 14-5.5 A
SIM-Card
12-24 VDC
Below Deck Unit
Above Deck Unit
TT-4338A
TT-4352A
cable
- Installation on bigger vessels: RG214/U up to 100 m length
Connector type: TNC
- Installation in a mechanically protected environment and shorter distances: RG223/U up to 25 m length
Cable requirements:
*
WLAN
Wireless SIP Phones
Wired IP Handset
Notebook
Power
PoE adapter
SIP Phone
