Chapter 2: Installation
98-141368-A 28
I/O interface
The terminal has an I/O connector with 5 configurable inputs/outputs
The connector is a WieCon Type 8513S connector.
A matching connector is included in the delivery.
Pinout

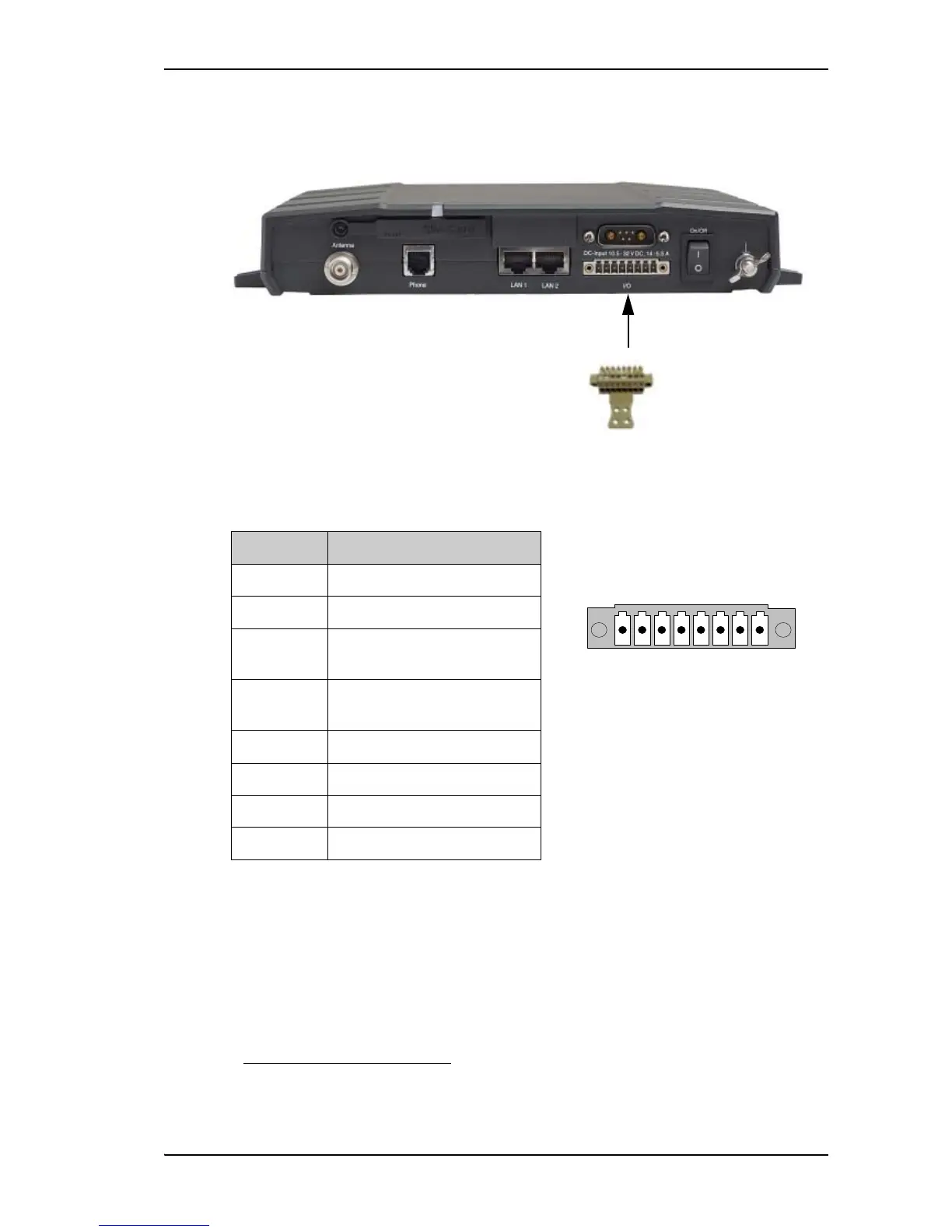

The figure and table below show the connector outline and pin assignments.
2
2. The default functions of the I/O pins are described in the next section.
Pin number Default configuration
1Ringer output
2 Warning/Error output
3 Indicator for data connection,
output
4 Control data connection on/off,
input
5 Ignition input
6Chassis GND
7 DC out, 9-15 VDC, 50 mA
8 DC in (Ignition input)
