Channel additions
HF SSB Transceiver 9323/9360/9390/9780 Technical Service Manual 6-3
Tx/Rx programming procedure
If you have Option TxE fitted, you will be able to program transmit frequencies as
well as receive frequencies.
If you have Option TxD fitted, you will not be able to program transmit
frequencies. You are able to program receive frequencies only. The protected
channels installed by Codan should have transmit frequencies. You can copy these
frequencies to new channel numbers. If you alter the transmit frequency, the
channel will automatically become a receive-only channel.
Transmit channels consist of:
• receive frequency
• transmit frequency
• sideband
• tone call group
• selcall group (option)
• channel protection
• channel comment
Receive channels consist of:
• receive frequency
• sideband
• channel protection
• channel comment
If you do nothing for 30 seconds in any step below, the transceiver returns you to
Channel mode without any changes having been made.
Selecting Channel mode

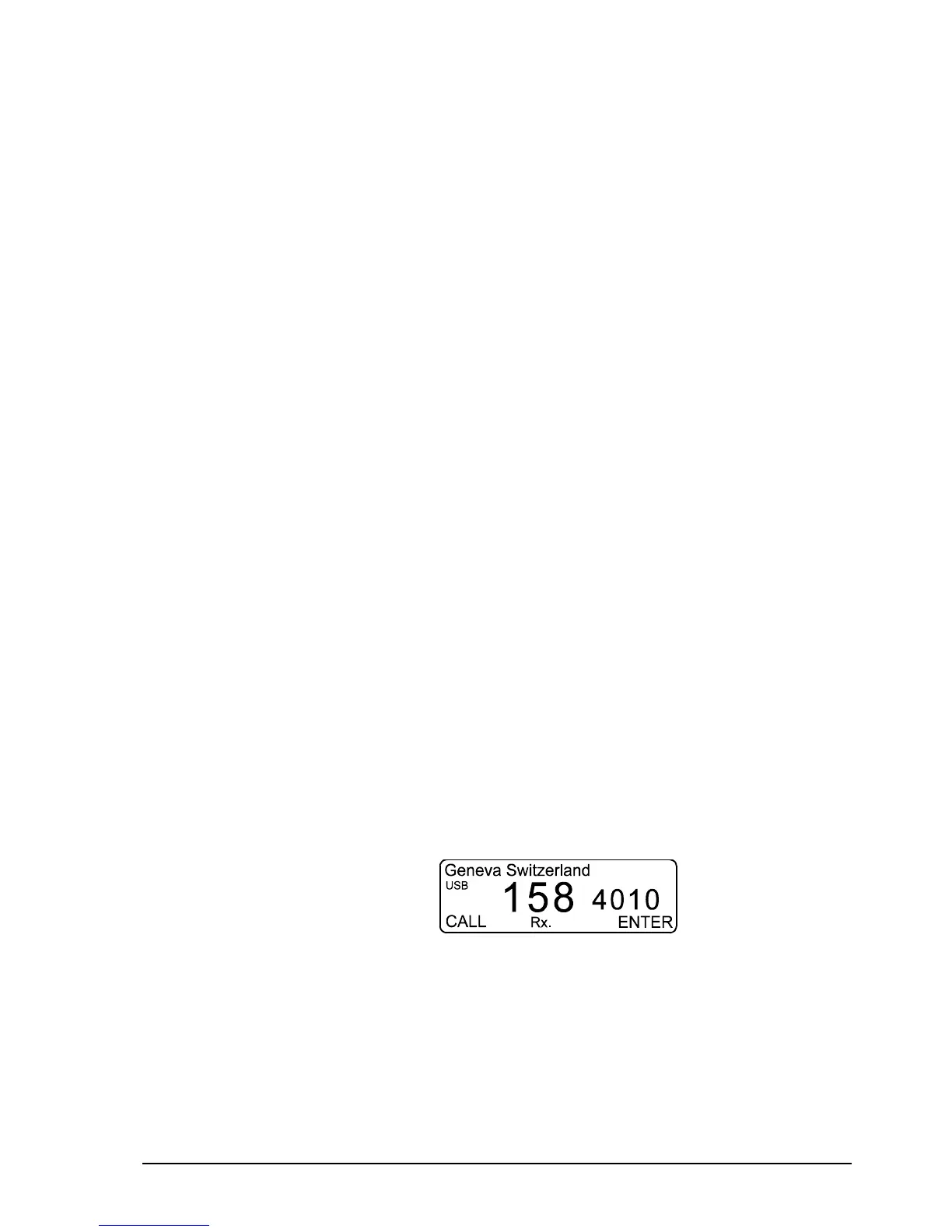

q If you are not in Channel mode, press Mode repeatedly until the display for
Channel mode appears.
Selecting a channel
q If you want to edit an existing channel, select the channel you want.
If you want to create a new channel, select any channel then proceed to the
next step.
