IP1500 and IP2500 Series
Administrator Guide
F o u r

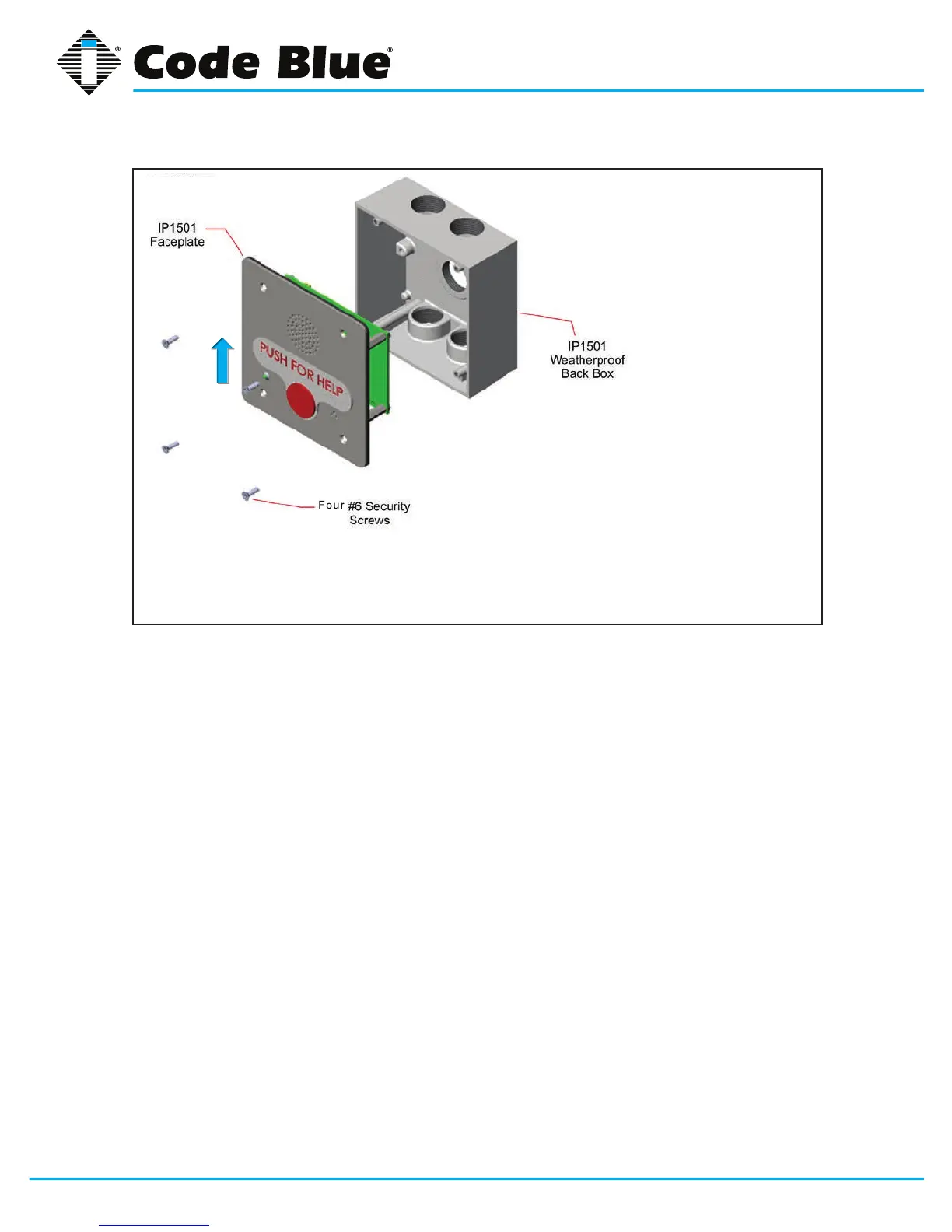

• Mounttheweatherproofbackboxtoaninside
wall or onto a surface.
• Connect a minimum of CAT 5e cable to the Eth-
ernetswitchport(PoELAN)forconnectivityto
the network.
• Attachthefaceplatetothebackboxwiththefour
-#6securityscrewsprovided.
• ConnectanyauxiliarydevicetotheN.O.aux
output1
Vertical
Orientation
NOTE:Threadsealmustbeappliedtothefourfaceplatesecurityscrews.
