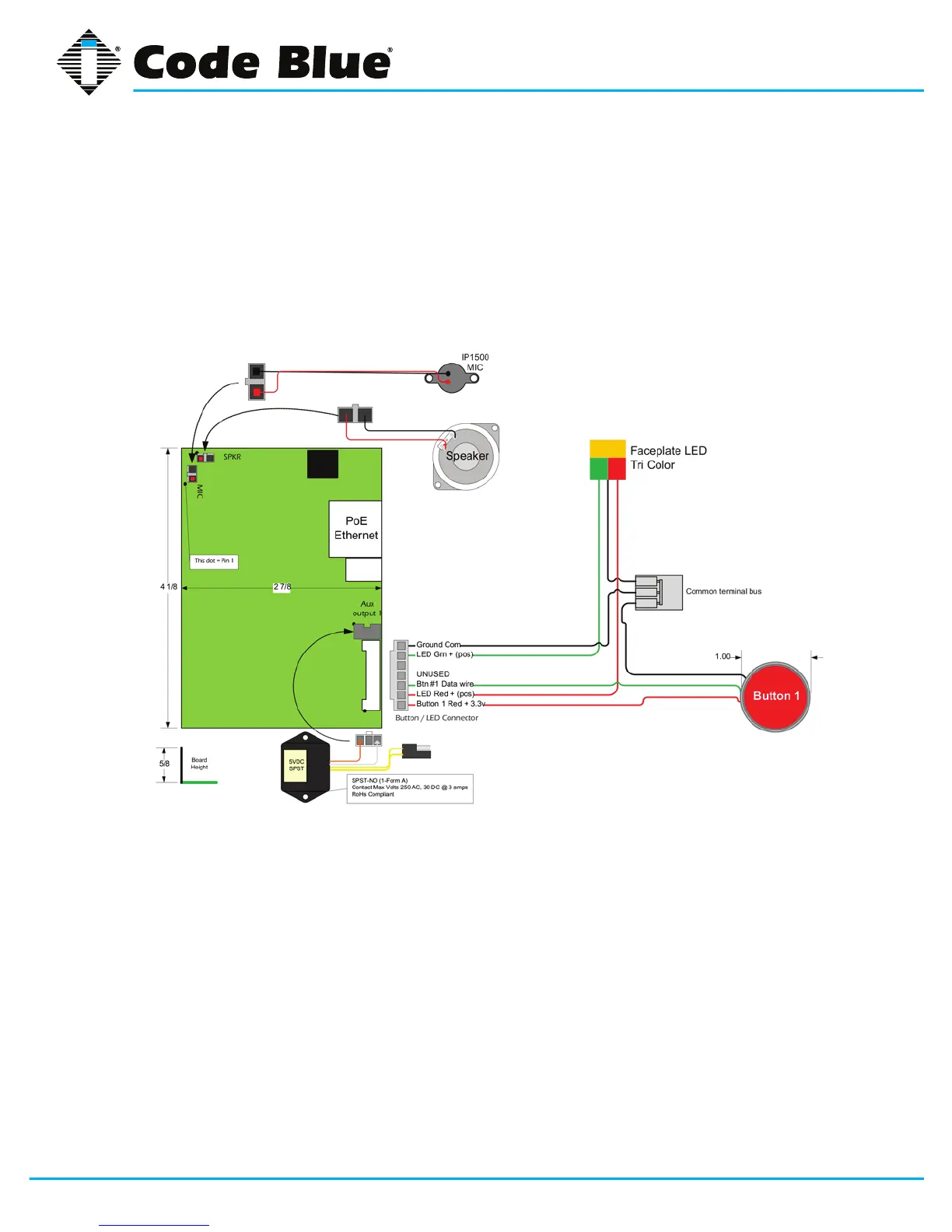

4.2 Wiring Diagram IP1500 and IP1501 Series
TheIP1500andIP1501SerieshasonePoELANportfornetworkconnectivityandonenormally
openauxiliaryoutputrelayfortriggeringdevicessuchasaLEDbeacon/strobe,camerapresetacti-
vationinputs,gatecontrolorthirdpartycontrollers.Therelaycanbeprogrammedtoholdtherelay
closedforthedurationofthecall,foraspecictimeperiodortoggledforaspecictimeperiodupon
theoperator’srequest.
