IP1500 and IP2500 Series
Administrator Guide

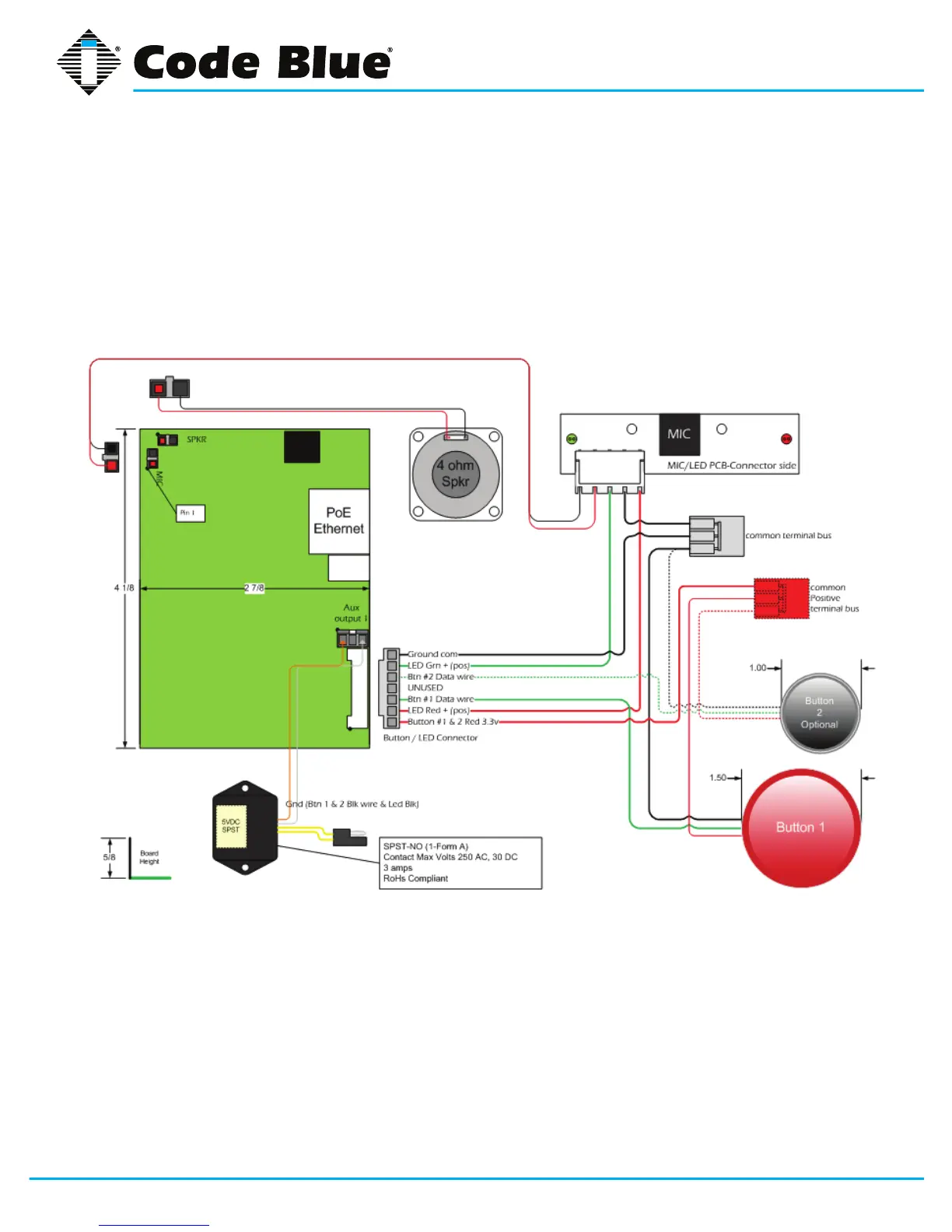

4.3 Wiring Diagram IP2500 and IP2501 Series
TheIP2500andIP2501SerieshasonePoELANportfornetworkconnectivityandonenormally
openauxiliaryoutputrelayfortriggeringdevicessuchasaLEDbeacon/strobe,camerapresetacti-
vationinputs,gatecontrolorthirdpartycontrollers.Therelaycanbeprogrammedtoholdtherelay
closedforthedurationofthecall,foraspecictimeperiodortoggledforaspecictimeperiodupon
theoperator’srequest.TheIP2500andIP2501Seriesalsohastheoptionofanadditionalbutton
for non-emergency calls.
