Cognex CC24 - Mini Delta Ribbon Connector

Mini Delta Ribbon Connector

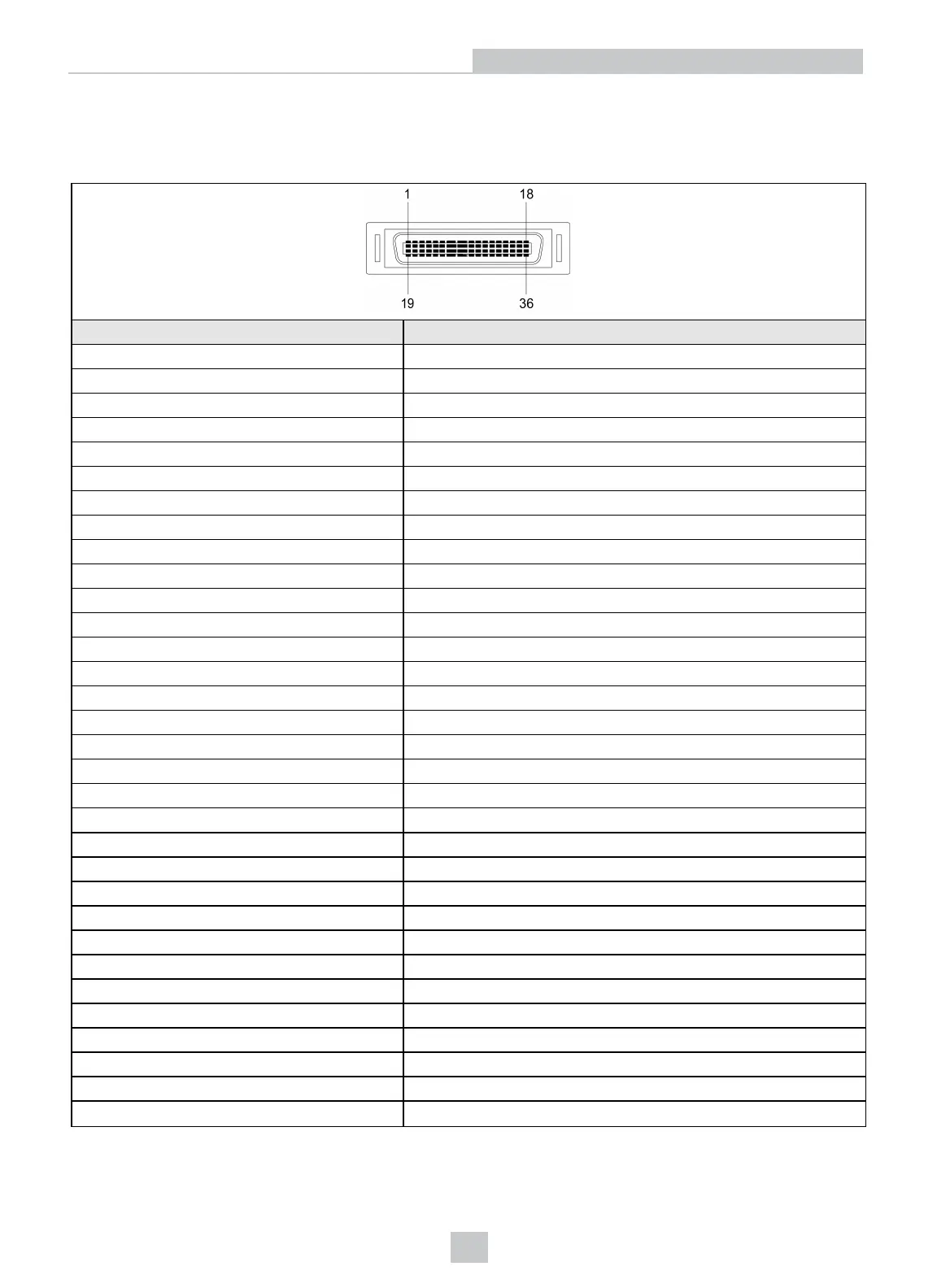

The Mini Delta Ribbon (MDR) connector is a 36-pin connector that provides access to inputs, output and encoder lines
via the Breakout cable or I/O Terminal Block cable.
Pin Number Signal Name
1 ENCODER A+
2 ENCODER A-
3 ENCODER GROUND
4 OUTPUT COMMON 4
5 OUTPUT 15
6 OUTPUT 14
7 OUTPUT 13
8 OUTPUT 12
9 OUTPUT 11
10 OUTPUT 10
11 OUTPUT 9
12 OUTPUT 8
13 OUTPUT COMMON 3
14 INPUT COMMON 2
15 INPUT 7
16 INPUT 6
17 INPUT 5
18 INPUT 4
19 ENCODER B+
20 ENCODER B-
21 NOT USED
22 OUTPUT COMMON 2
23 OUTPUT 7
24 OUTPUT 6
25 OUTPUT 5
26 OUTPUT 4
27 OUTPUT 3
28 OUTPUT 2
29 OUTPUT 1
30 OUTPUT 0
31 OUTPUT COMMON 1
32 INPUT COMMON 1
