Terminal Block Assignments

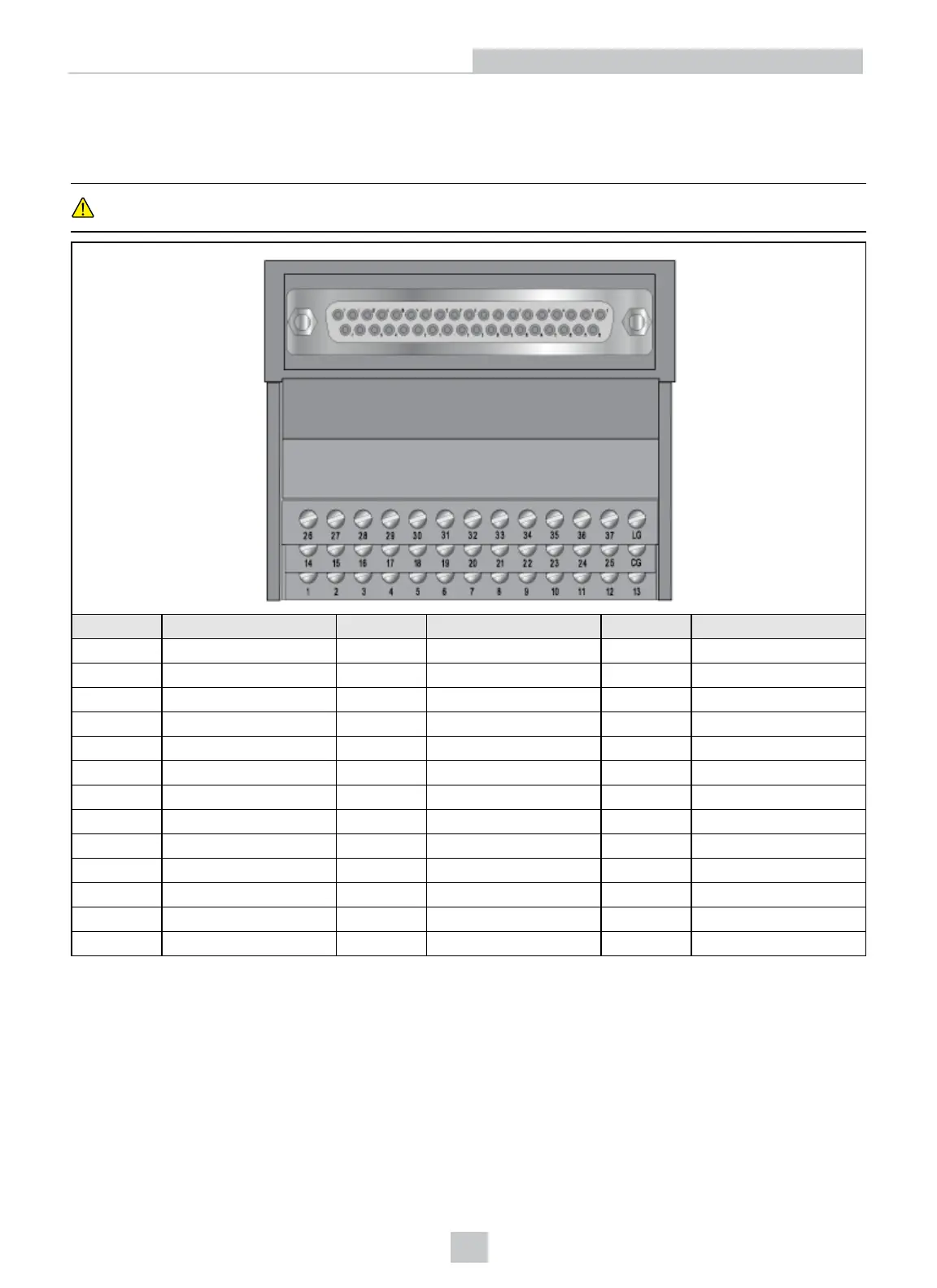

The DIN-rail mountable Terminal Block provides access to the Communication card's input, output and encoder lines.
Recommended wiring is 12-24 AWG, solid or stranded wire.
CAUTION: The maximum torque that can be applied to the I/O terminal connectors is 0.5 Nm to 0.6 Nm (4.4 in-lb to
5.3 in-lb). Applying torque above this limit can damage the connectors.
Label Signal Name Label Signal Name Label Signal Name
1 INPUT 0 14 OUTPUT 0 26 OUTPUT 8
2 INPUT 1 15 OUTPUT 1 27 OUTPUT 9
3 INPUT 2 16 OUTPUT 2 28 OUTPUT 10
4 INPUT 3 17 OUTPUT 3 29 OUTPUT 11
5 INPUT 4 18 OUTPUT 4 30 OUTPUT 12
6 INPUT 5 19 OUTPUT 5 31 OUTPUT 13
7 INPUT 6 20 OUTPUT 6 32 OUTPUT 14
8 INPUT 7 21 OUTPUT 7 33 OUTPUT 15
9 INPUT COMMON 1 22 OUTPUT COMMON 1 34 OUTPUT COMMON 3
10 INPUT COMMON 2 23 OUTPUT COMMON 2 35 OUTPUT COMMON 4
11 ENCODER B- 24 ENCODER B+ 36 UNUSED
12 ENCODER A- 25 ENCODER A+ 37 UNUSED
13 ENCODER GROUND CG CHASSIS GROUND LG LED GROUND
