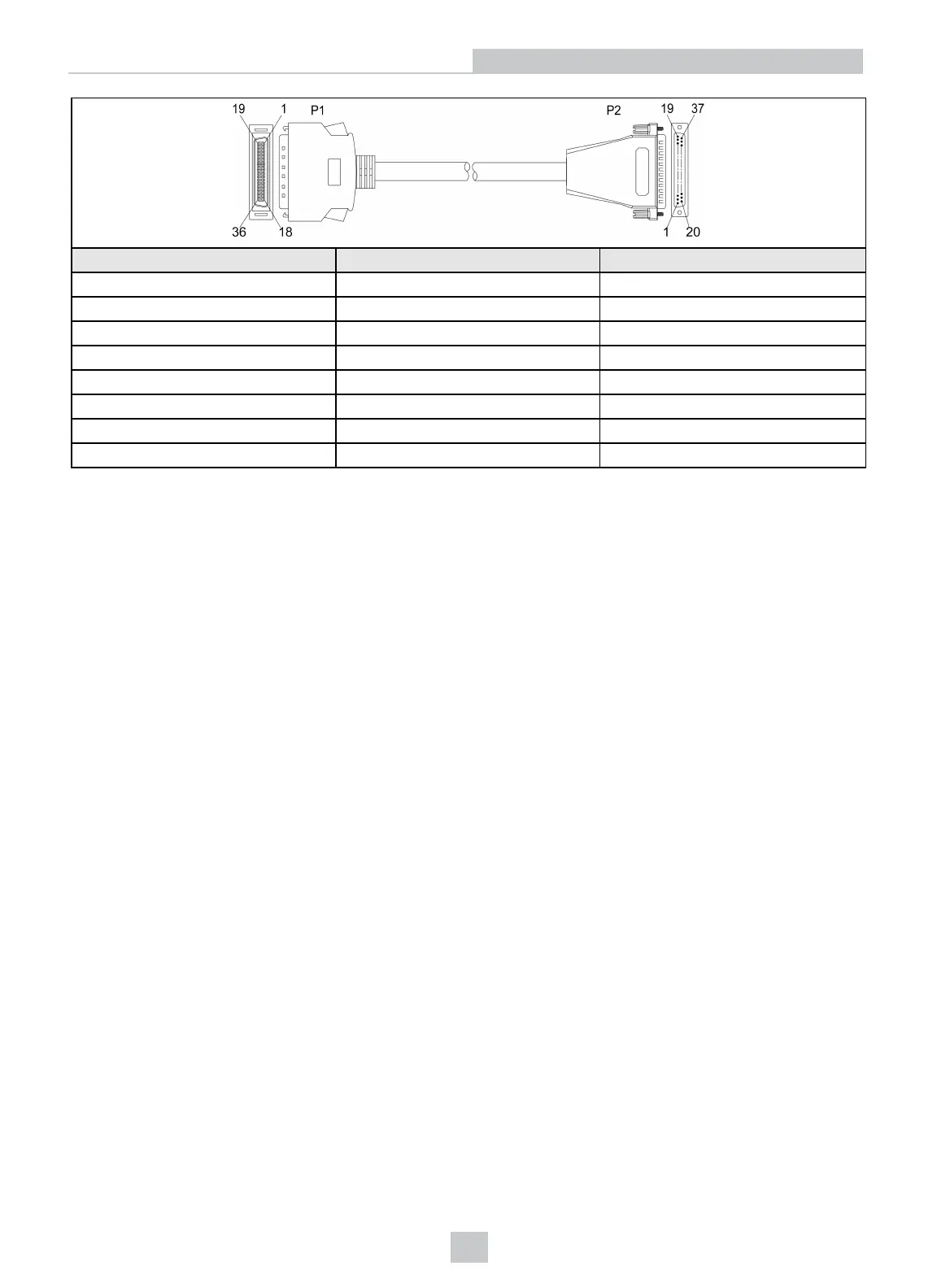

P1 Pin Number Signal Name P2 Pin Number
30 OUTPUT 0 14
31 OUTPUT COMMON 1 22
32 INPUT COMMON 1 9
33 INPUT 3 4
34 INPUT 2 3
35 INPUT 1 2
36 INPUT 0 1
N/A NOT USED 37
