Cognex CC24 - Connectors and Indicators

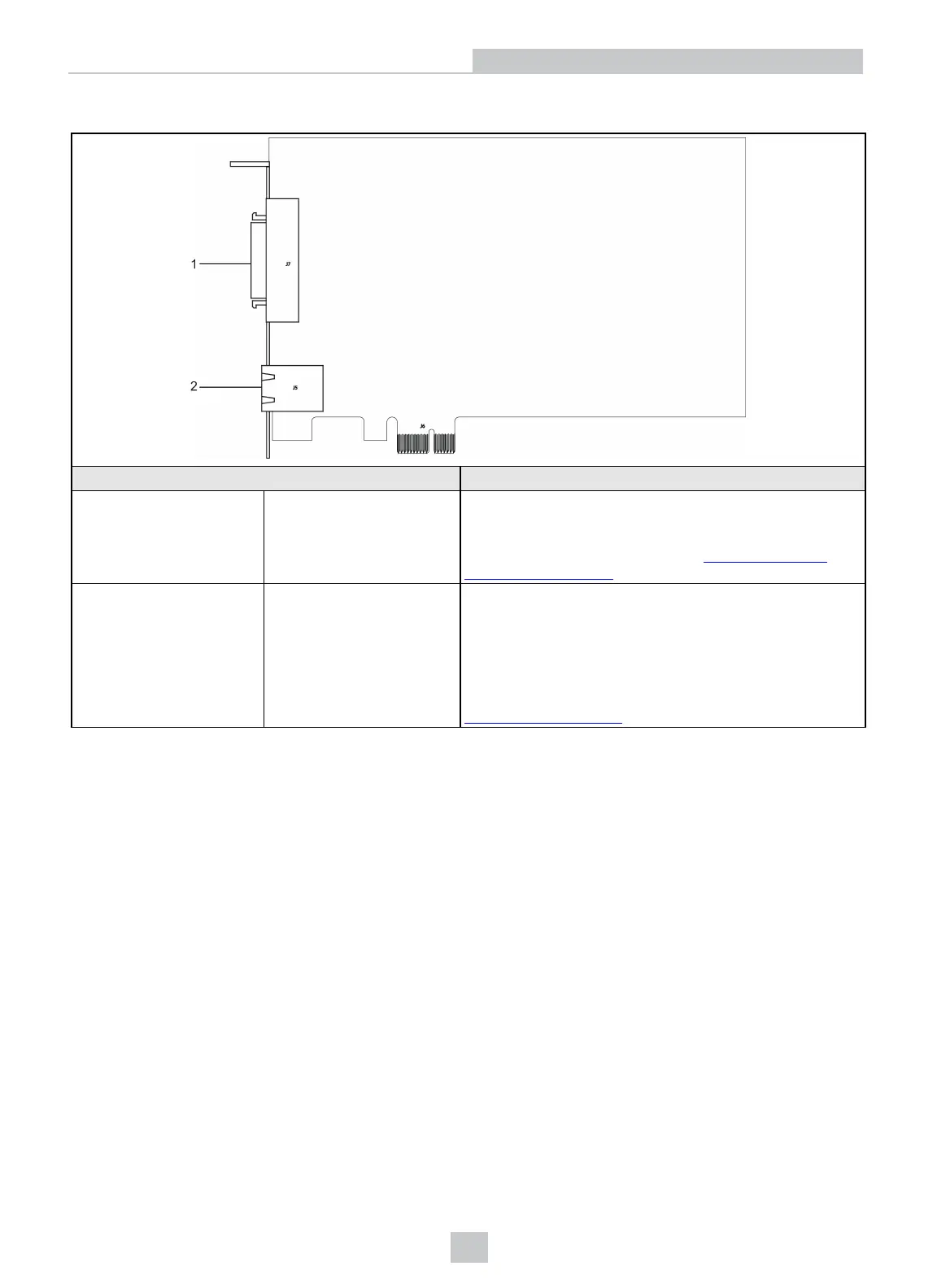

Connectors and Indicators
Connector/Indicator Function
1 Mini Delta Ribbon
Connector
The Mini Delta Ribbon (MDR) connector is a 36-pin
connector that provides access to inputs, output and
encoder lines via the Breakout cable or I/O Terminal Block
cable. For more information, refer to
Mini Delta Ribbon
Connector on page18
.
2 I-ENETPort and LEDs The I-ENET port is a 10/100 RJ-45 Ethernet port that can be
connected to a network that is dedicated to industrial
Ethernet devices (for example, PLCs or robots) to
communicate with the devices using supported industrial
Ethernet protocols. The green LED blinks when a network
connection is detected. The yellow LEDblinks when
network activity is detected. For more information, refer to
I-ENETPort on page17
.
8
Introduction
