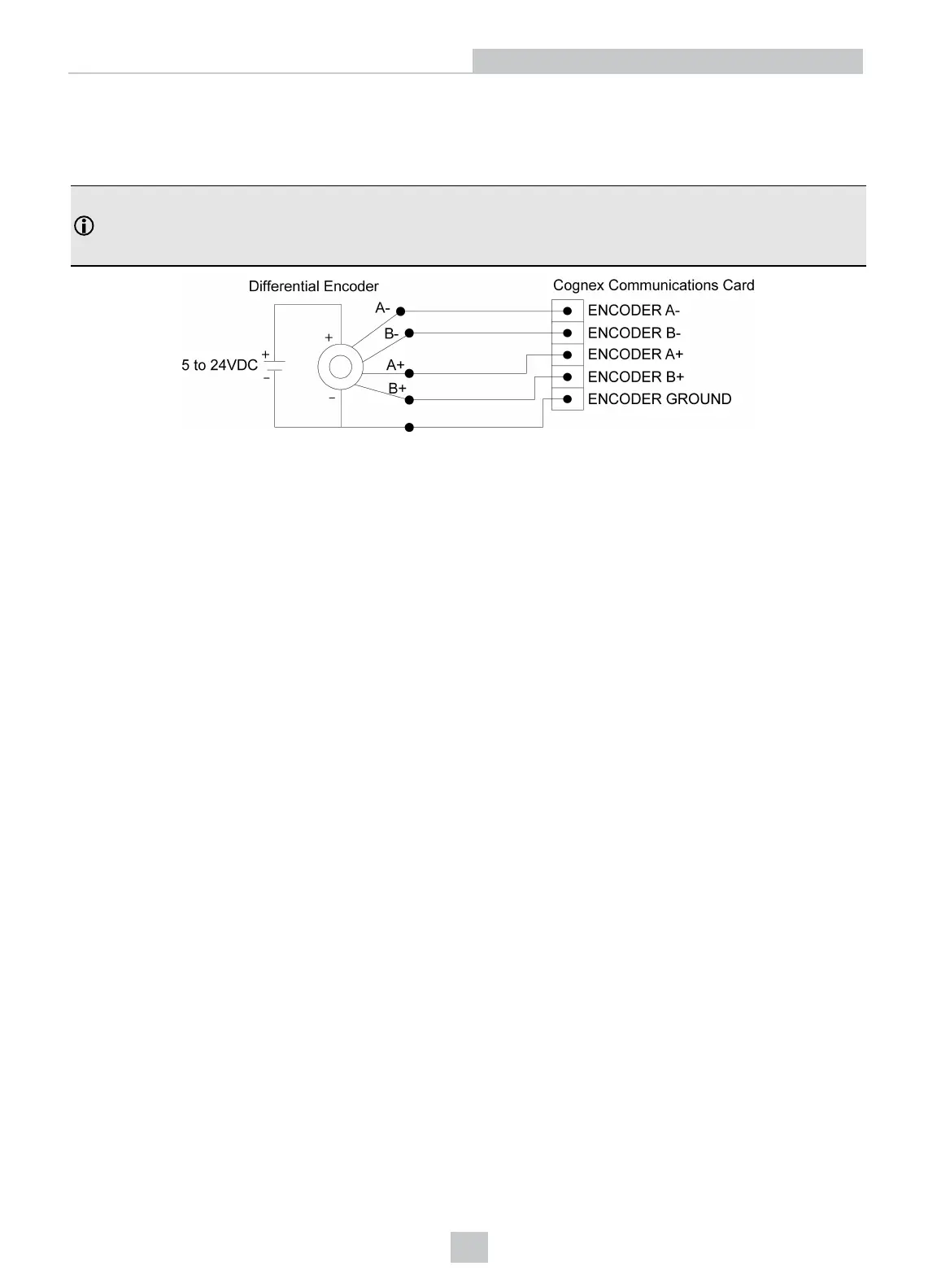

Differential Encoder Configuration
For a differential encoder, connect A+, B+, A- and B- to the corresponding encoder outputs. Connect the encoder's
ground wire to ENCODERGROUND.
Note:
l Non-quadrature, single-channel encoders are not supported.
l The frequency of encoder pulses must not exceed 50 kHz.
33
Wire Inputs and Outputs
