Cognex CC24 - Page 21

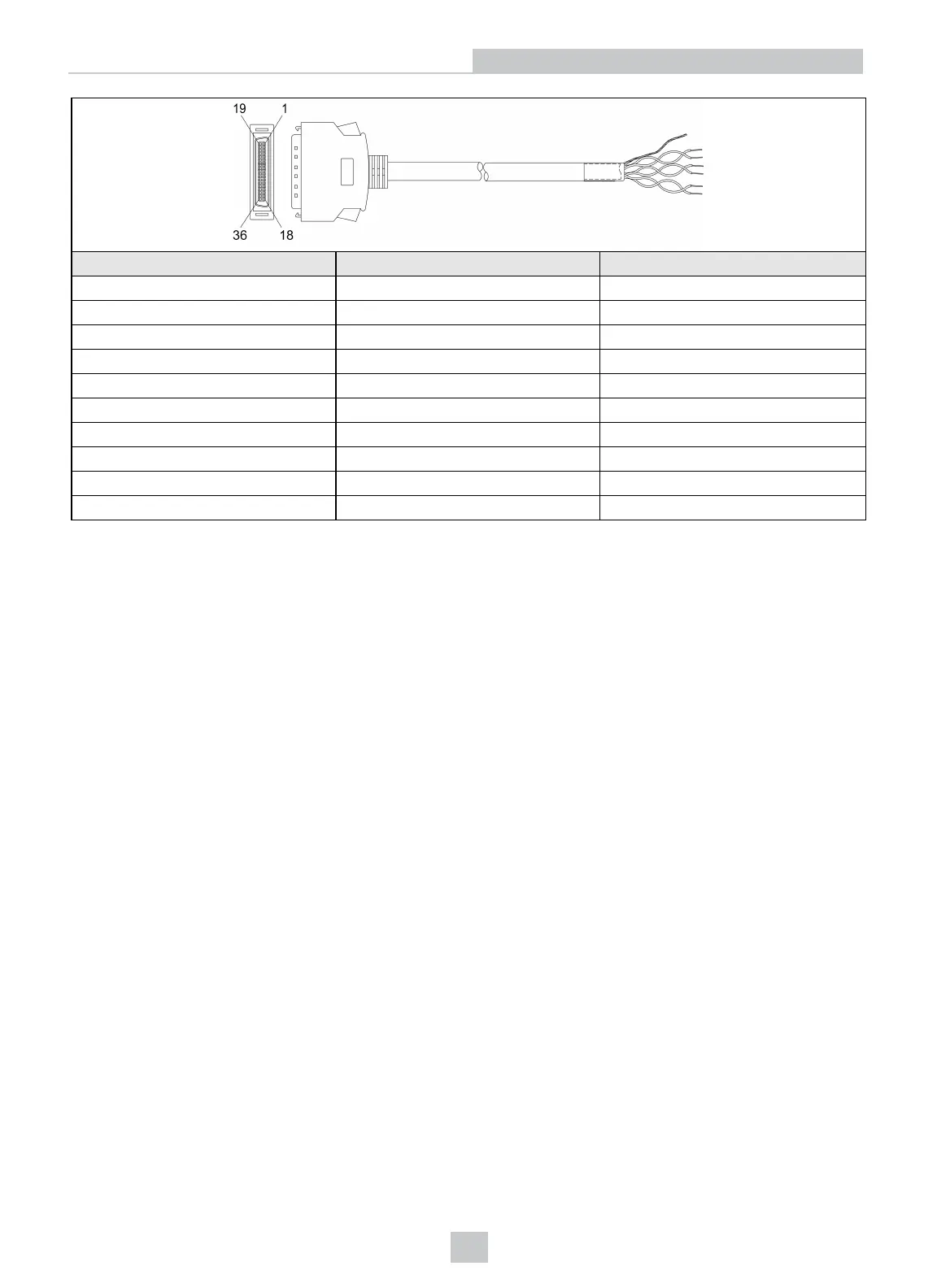

Pin Number Signal Name Wire Color
28 OUTPUT 2 Blue/Red
29 OUTPUT 1 Yellow/Red
30 OUTPUT 0 Brown/Red
31 OUTPUT COMMON 1 Orange/Red
32 INPUT COMMON 1 White/Green
33 INPUT 3 Blue/Green
34 INPUT 2 Yellow/Green
35 INPUT 1 Brown/Green
36 INPUT 0 Orange/Green
Shell Shield Bare Wire
21
Specifications
