Cognex DM-280X - Page 23

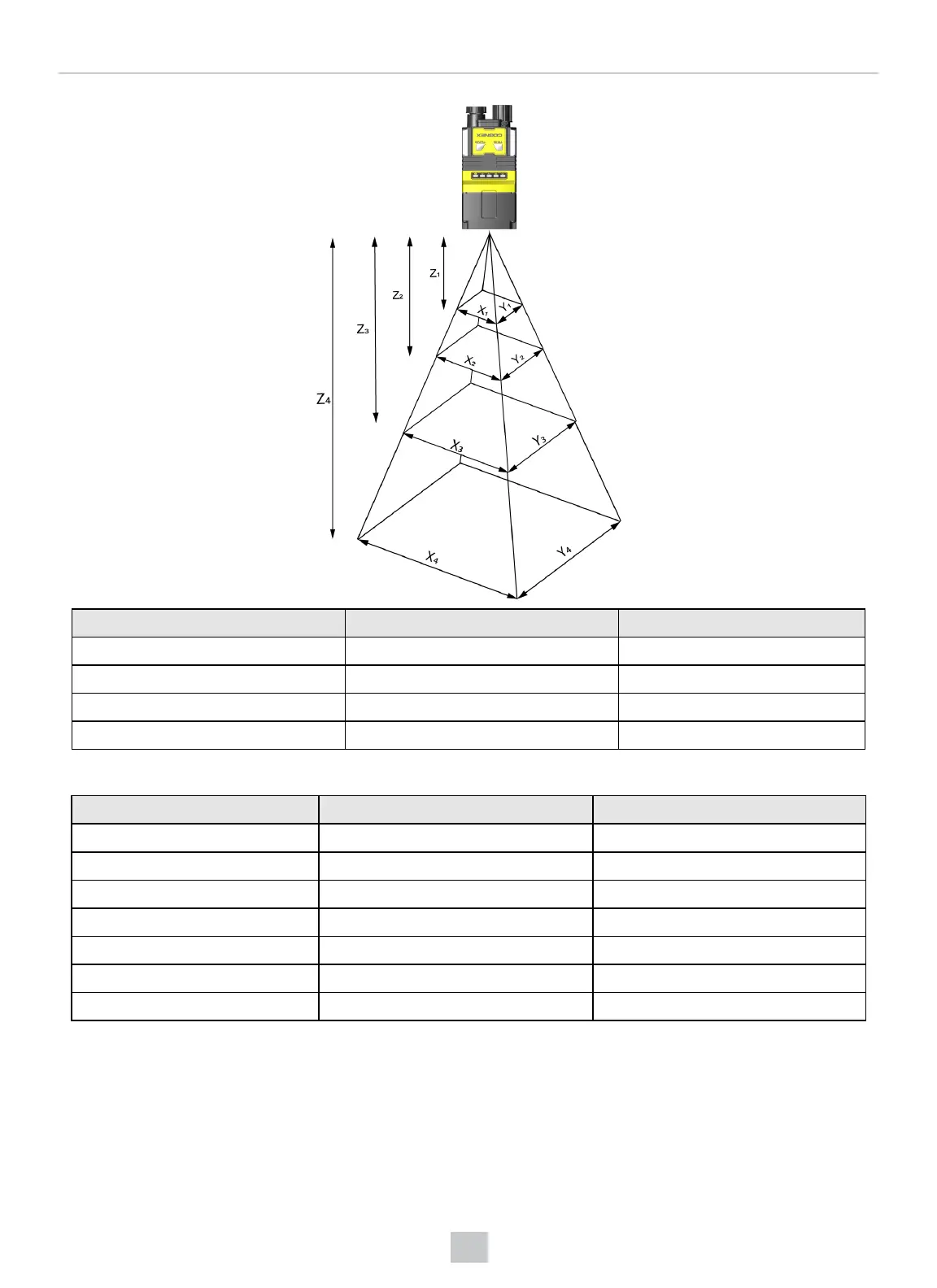

Working distance in mm Horizontal values in mm Vertical values in mm
Z
1
= 150 X
1
= 46 Y
1
= 34
Z
2
= 225 X
2
= 69 Y
2
= 52
Z
3
= 375 X
3
= 116 Y
3
= 87
Z
4
=1000 X
4
=310 Y
4
=232
Distances in mm 2D min. code in mil 1D min. code in mil
80 2 2
150 3 2
190 4 3
225 5 3
375 8 5
500 10 7
1000 20 15
