Installing a High Speed Liquid Lens
This section shows the process of installing a liquid lens onto the DataMan 280 with a 6.2 mm lens.

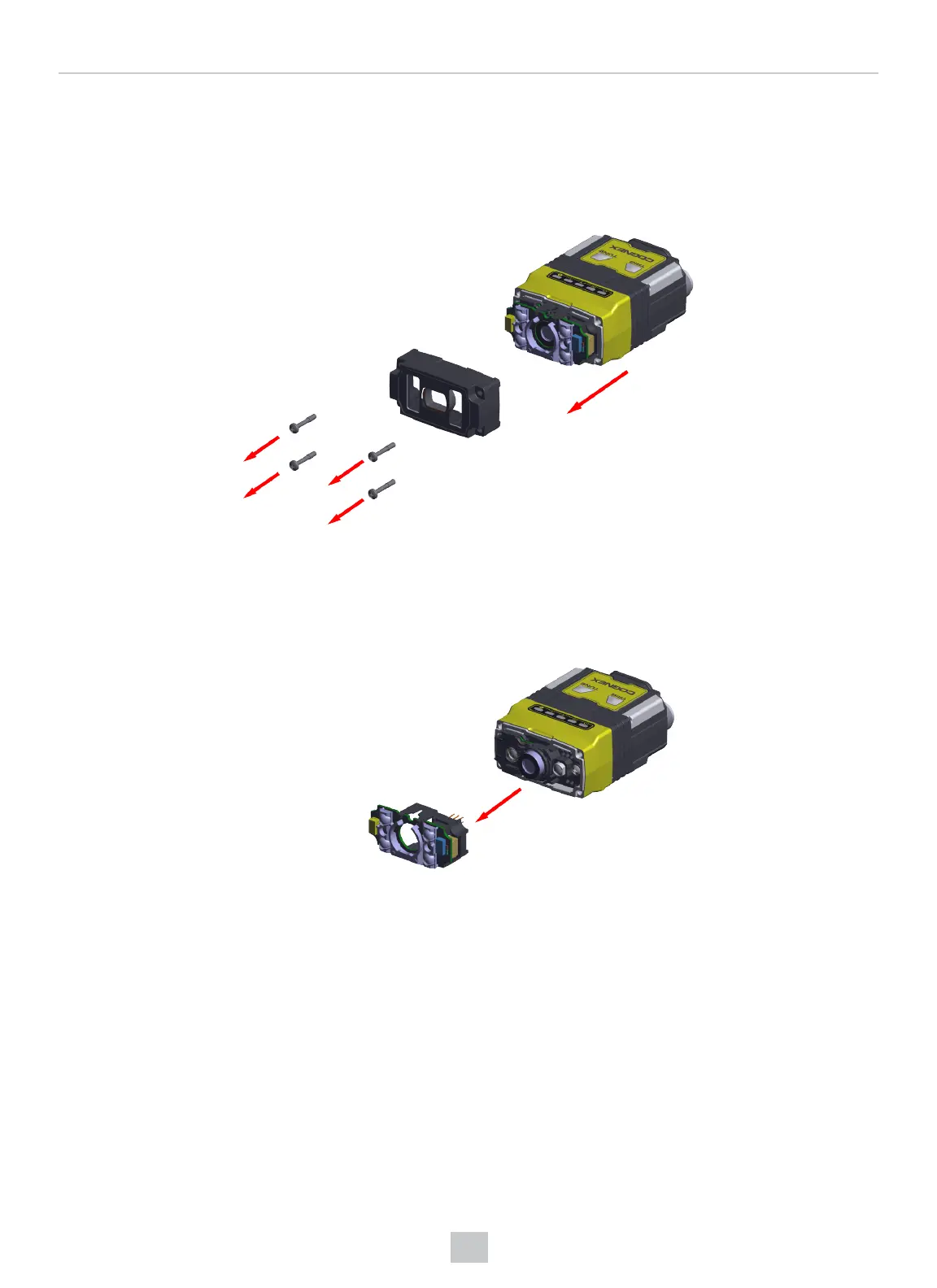

1. Unscrew the four M2 x 12 mm Phillips Pan head screws, then take off the metal cover from the reader.
2. Remove the illumination module.
