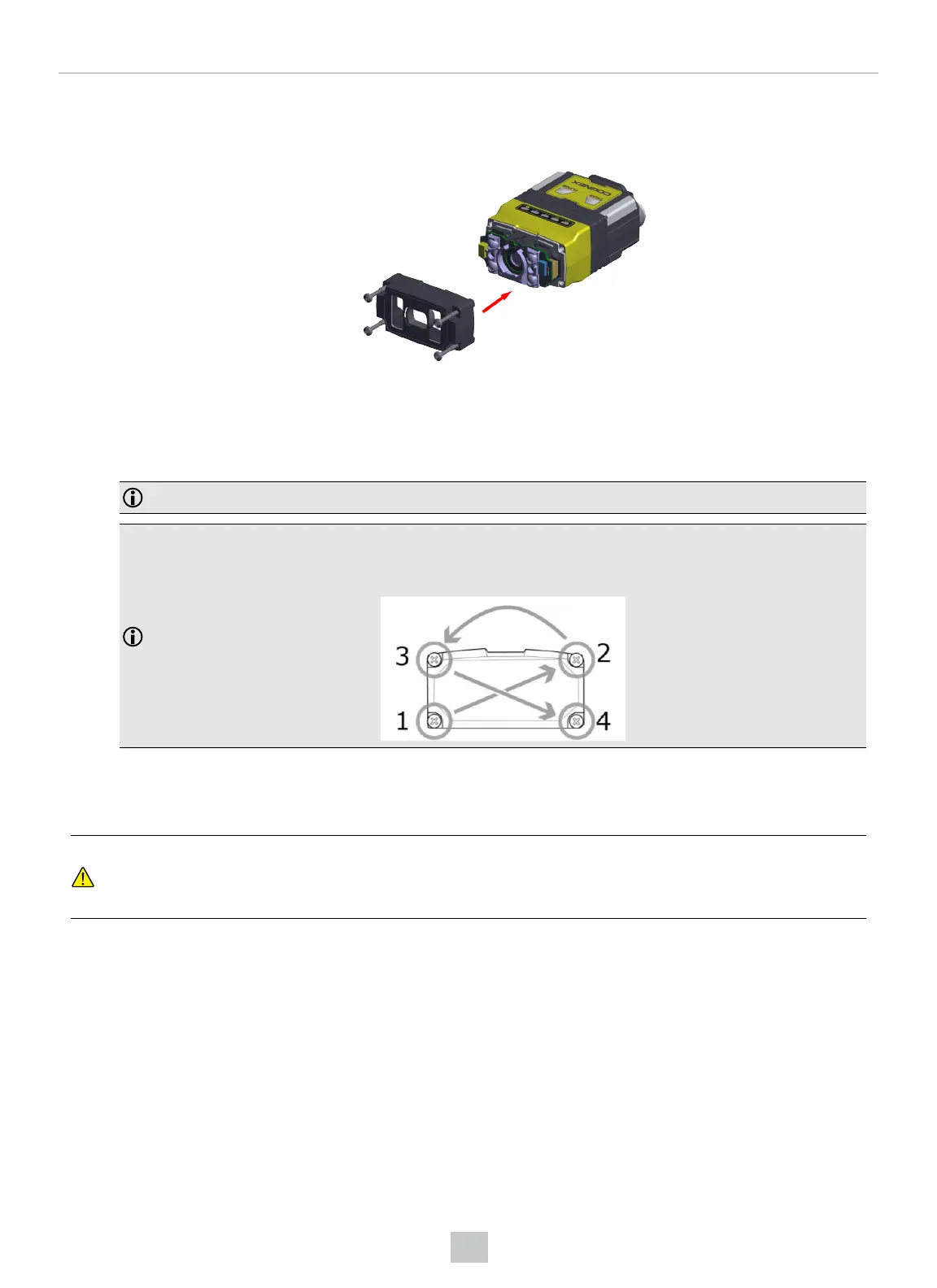

8. Re-attach the front cover.
Note: The rib in the front cover must be oriented to the top side.
Note:
Observing the tightening sequence below, tighten all four M2 x 12 mm Phillips Pan screws to 16 Ncm using
a torque wrench.
Mounting the Reader
The reader provides mounting holes for attachment to a mounting surface.
CAUTION: The reader has to be grounded, either by mounting the reader to a fixture that is electrically grounded or
by attaching a wire from the reader’s mounting fixture to frame ground or Earth ground. If a ground wire is used, it
has to be attached to one of the four mounting points on the back plate of the reader and not to the mounting points
on the front of the reader.
