Cognex DM-280X - Changing a 6.2 MM Lens to a 16 MM Lens

Changing a 6.2 mm Lens to a 16 mm Lens
This section provides a step-by-step process for changing the 6.2 mm lens to a 16 mm lens on the reader.

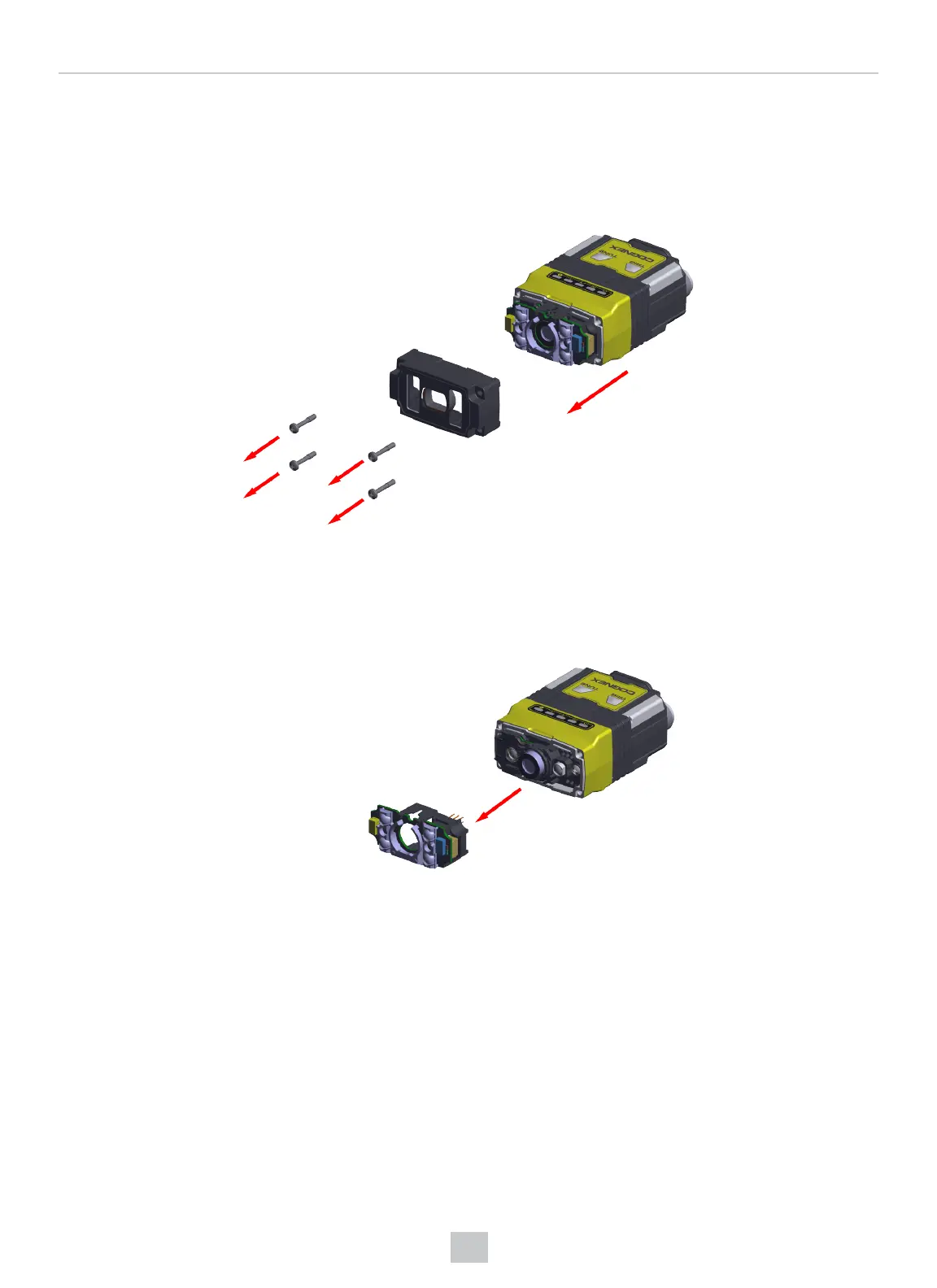

1. Unscrew the four M2x12mm Phillips Pan head screws, then take off the metal cover from the reader.
2. Remove the illumination module.
