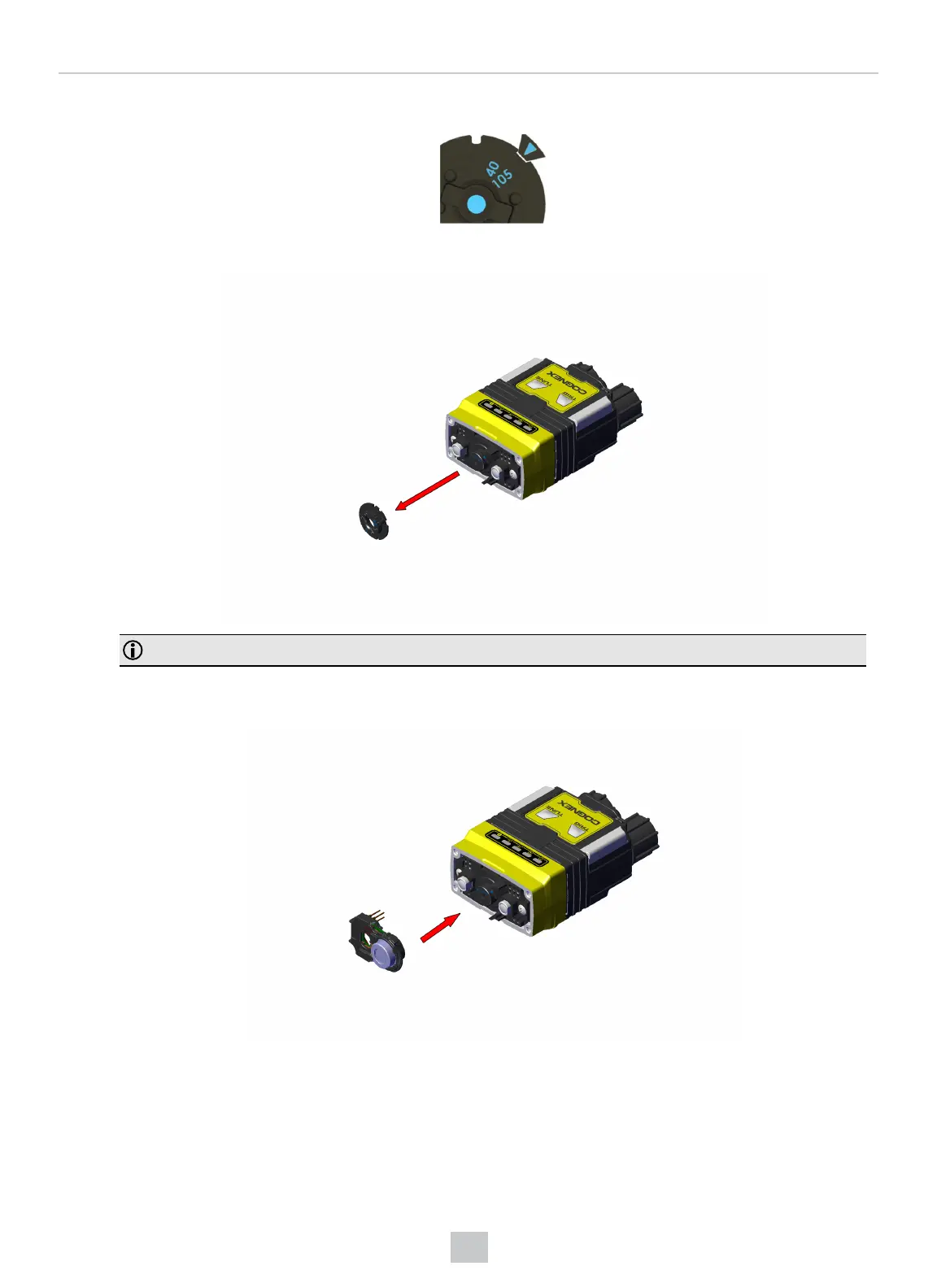

3. Turn the lens cap to the 105 mm position.
4. Carefully remove the lens cap from the imager lens.
Note: In order not to lose focus calibration, do not rotate the imager lens while the lens cap is removed.
5. Attach the liquid lens accessory by aligning the 2x2 connectors of the liquid lens with the 2x2 sockets on the
optics mount.
