14
SECTION 4: MAINTENANCE
Removing the Chassis Anti-Pullback
Lever and Spring
Remove the center chassis belt shaft and remove the anti-
pullback lever and spring.
DISASSEMBLING THE LOWER
HOUSING
Removing the Transformer

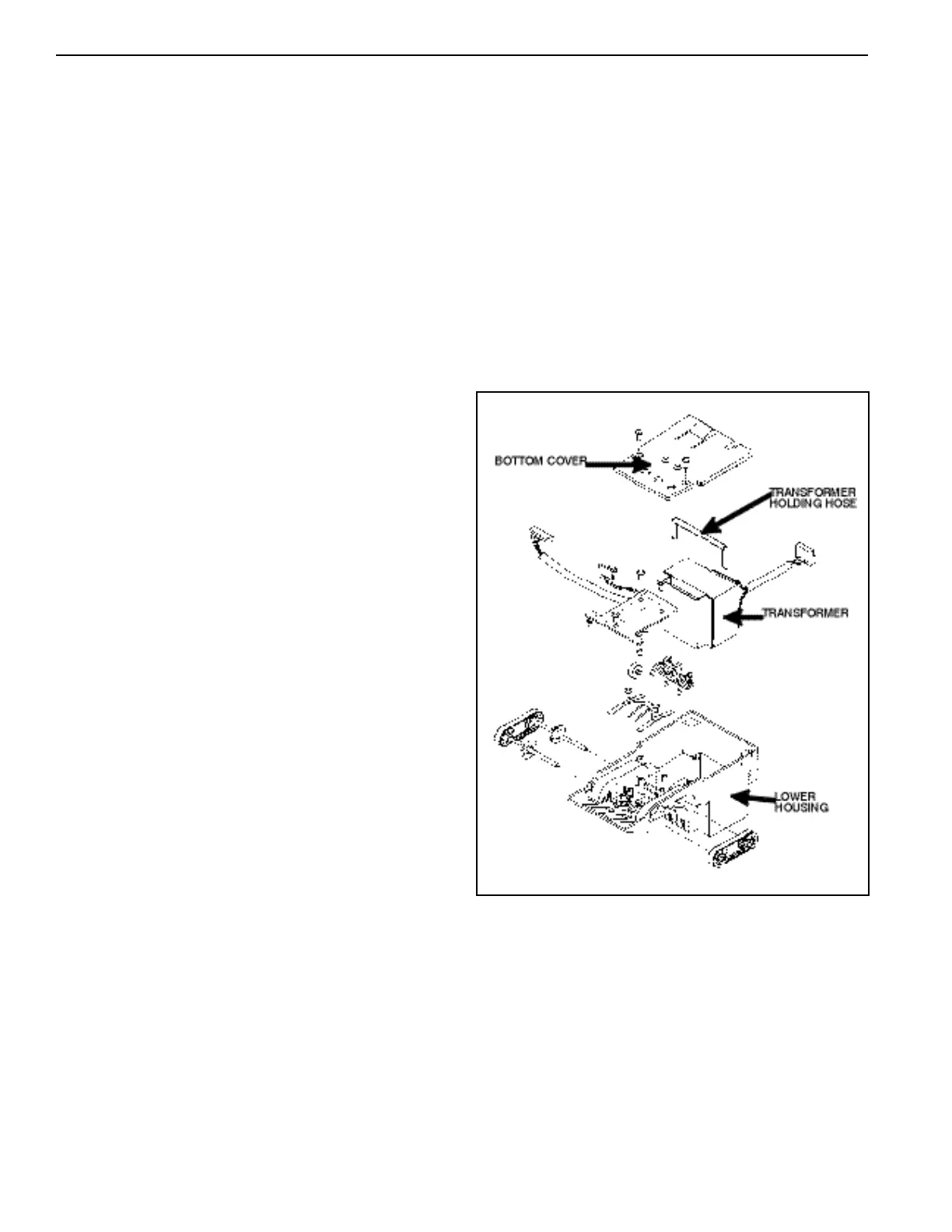

(see Figure 17)
Remove the two Phillips screws from the bottom of the
lower housing that secure the bottom cover. Remove the
bottom cover. Cut the cable tie and separate the harness.
Remove the hose that holds the transformer in place.
Remove the transformer.
Figure 17
