Connection speed
Up to 3000 Bps
Hint:
IG-IB communication is typically faster than modem:
- when IG-IB is connected to controller via CAN and LAN - 3000 Bps
- when IG-IB is connected to controller via RS232 and LAN - 1200 Bps
- when IG-IB is connected to controller via CAN and Internet - ~500 Bps
- when IG-IB is connected to controller via RS232 and Internet - ~500 Bps (depends on the
internet line throughput).
Connection from PC
For connection from PC see the manual of the PC program (InteliMonitor, etc.).
Open the Open/Select connection window and set:
 Internet type of connection
 Controller address
 Access code
 IG-IB IP address

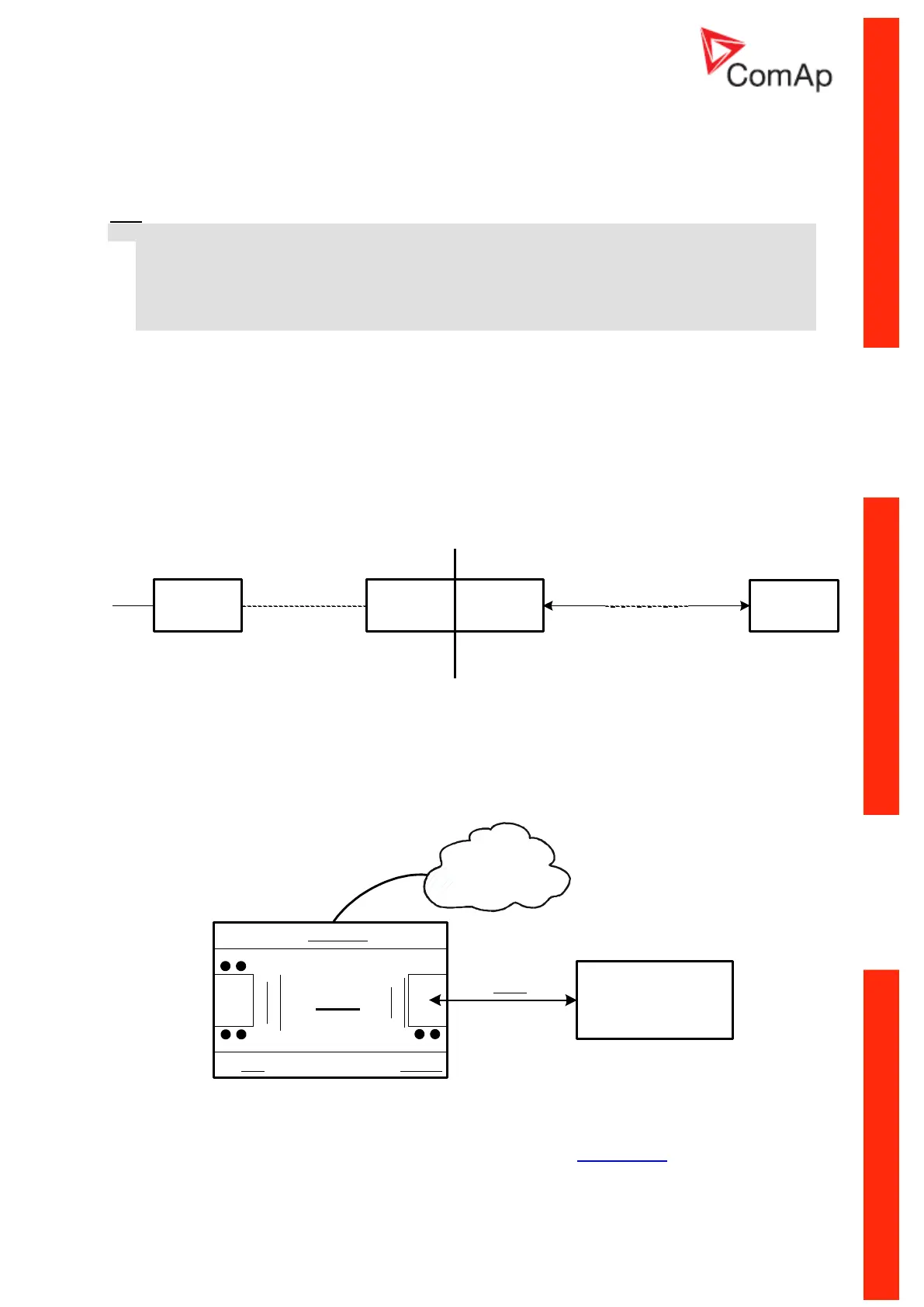

Note that IP address you set can be different from the IP address of iG-IB (when the iG-IB IP address
is not public). It depends on gateway setting:
IG-IB
GATEWAY
Internet
GATEWAY
IG- IB IP address Gateway IP address
PC
SW
IP address
set in PC SW
COMPANY ETHERNET
One controller - RS232 connection
In this case no dongle is necessary.
One unit could be also connected via CAN interface.
LED 1 2
LED 3 4 5 6 LED
INTERNET
ETHERNET
IG-CU
DONGLE
MODEM
IB CONFIG
POWERCAN
iG-IB
Ix-NT
RS232
Two controllers – CAN / Ethernet connection
The dongle must be used. The type of IG-IB dongle limits number of accessible controllers (up to 32).
Dongles for up to 3, 7, 15 and 32 controllers are available. See also IG-IB Dongle
