ComAp InteliGen NTC User Manual

Communication Guide, ©ComAp – March 2014 61
IGS-NT Communication Guide 03-2014.pdf

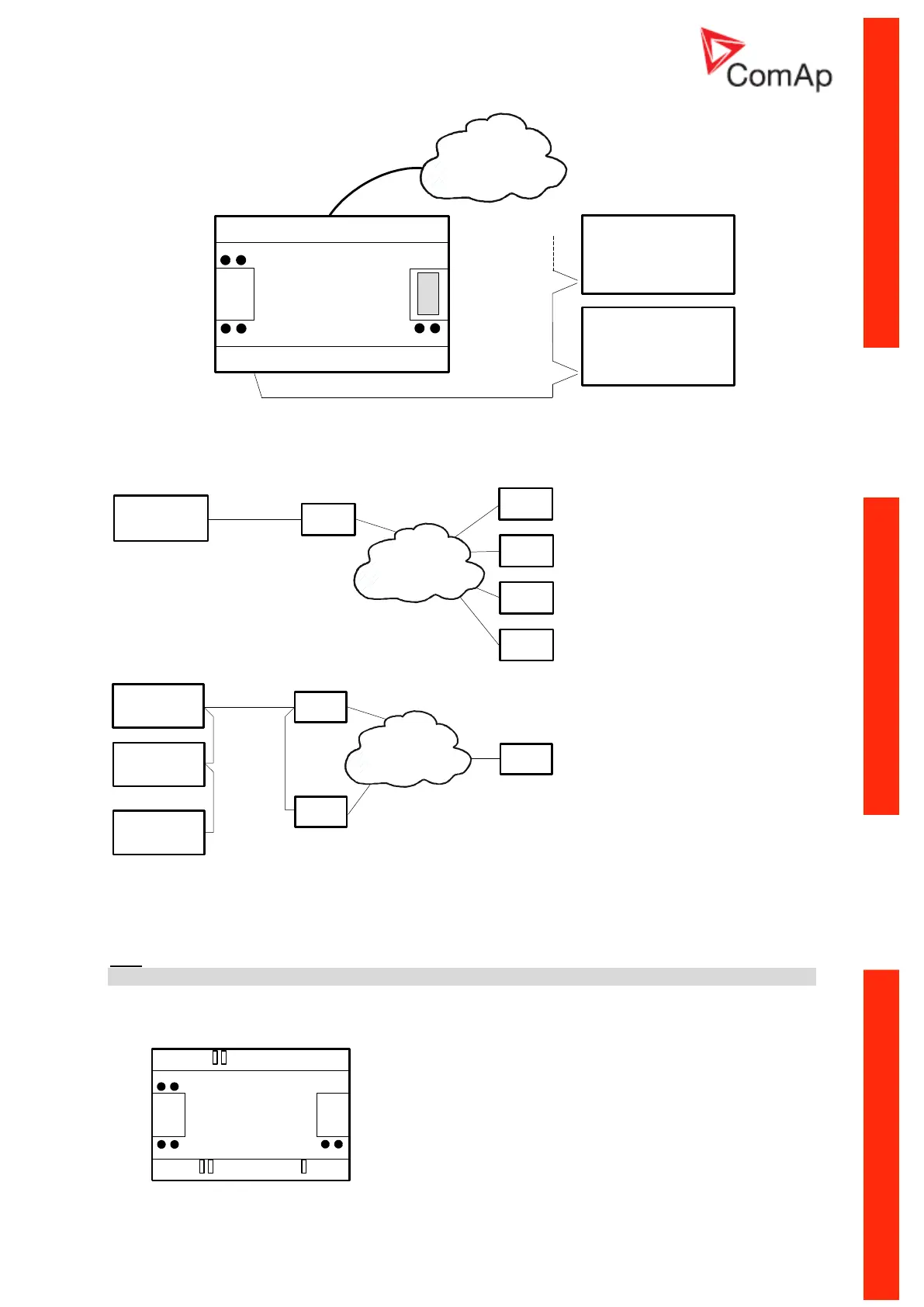

INTERNET
ETHERNET
IG-CU
DONGLE
MODEM
IB CONFIG
POWERCAN
iG-IB
Ix-NT
Ix-NT
CAN BUS
DONGLE
LED 1 2
LED 3 4 5 6 LED
CAN2
CAN2
Max four PCs can be connected to one iG-IB at once
INTERNET
Ix-NT
CAN2
PC
PC
PC
PC
IG-IB
IP=X.X.X.A
INTERNET
Ix-NT
CAN2
IG-IB
IP=X.X.X.A
Ix-NT
Ix-NT
IG-IB
IP=X.X.X.B
PC
max. 8x
If more than 8 IGS-NT or other
controllers are used with intercontroller CAN bus and monitored via IG-IB or I-LB units, the reaction on
commands issued from InteliMonitor or other monitoring SW can be delayed up to several seconds.
The same holds for values reading, i.e. refresh of measured power etc. in InteliMonitor or other PC
SW.
Hint:
Contact local IT manager in any case before using iG-IB.
Indication and Diagnostic LED’s
ETHERNET
IG-CU
DONGLE
MODEM
IB CONFIG
POWERCAN
iG-IB
LED 1 2
LED 3 4 5 6 LED
7 8
9 10 11
