Technical Data Loading System MkII
12

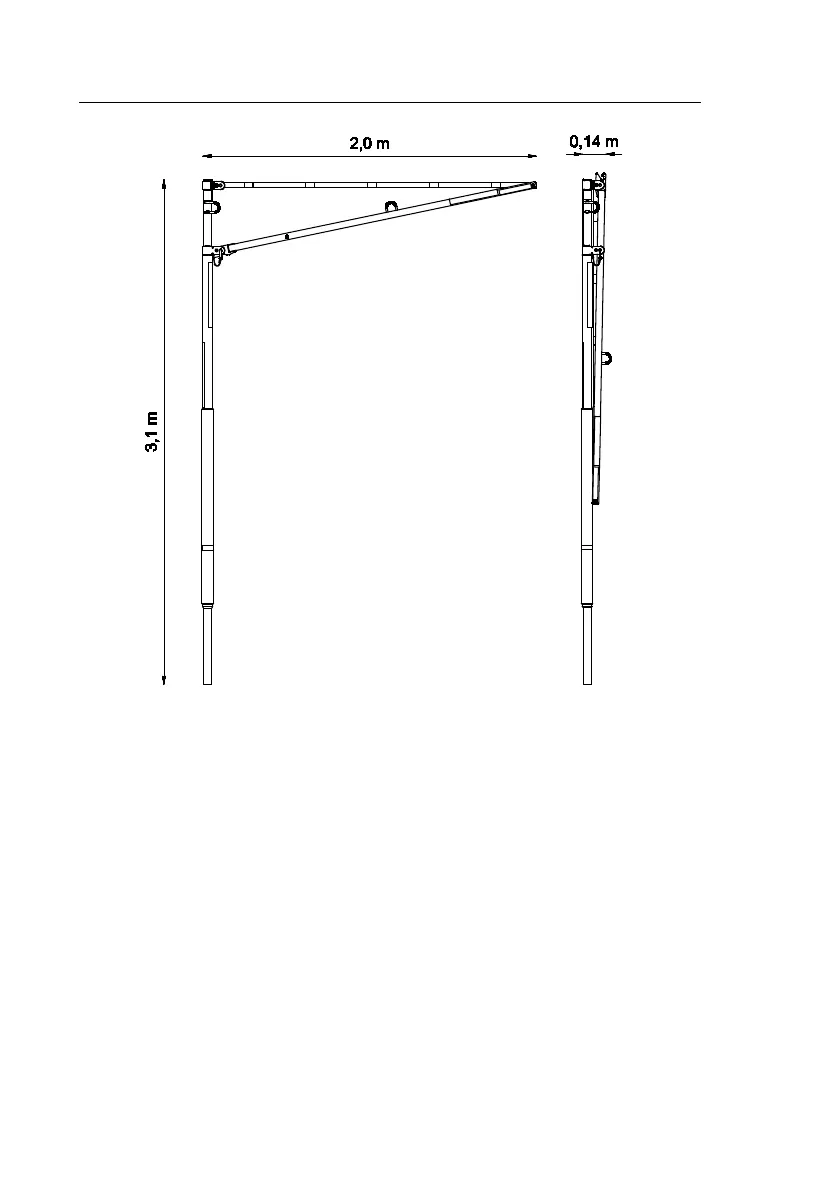

Figure 5. The SkyReach Anchor in assembled and folded mode.
SkyReach Anchor Labels and Markings
The Figure 6 below shows all the labels and markings of the SkyReach
Anchor. The following figures (Figure 7, Figure 8 and Figure 9) are showing
these important elements.
