COMBISAFE System Mk II - Technical Data: Product Labels

Technical Data Loading System MkII
14

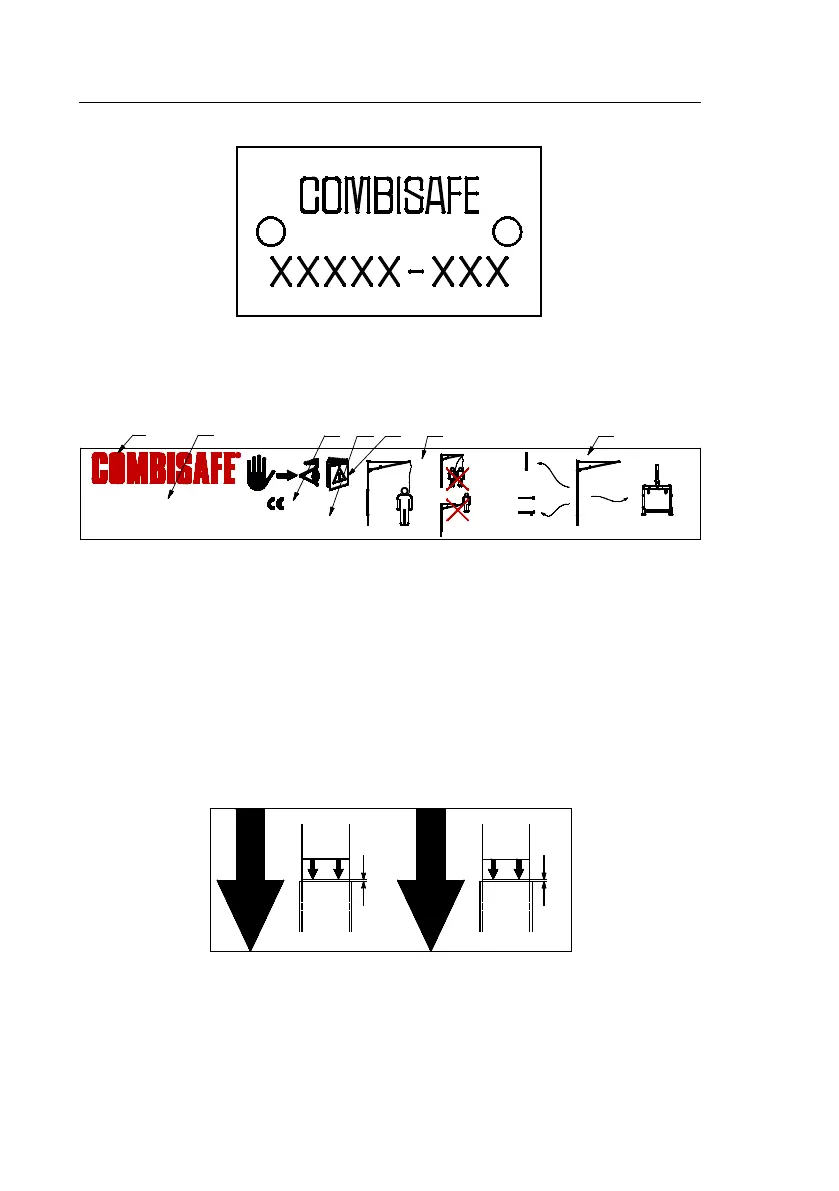

Figure 7. A close-up of the ID Plate including the serial number.
www.combisafe.com
© Combisafe International AB 100583-1446
EN 795:2012
0158
SKYREACH Anchor
#8100
#8200
Type B
#8500
Type B
#8800
Type E#8100
1
2
3
4
5
6
7
Figure 8. Detailed view of the Product Information Label
1. Manufacturer.
2. Name of the product.
3. Identification number of the notified body; DEKRA EXAM GmbH,
responsible for CE production quality control.
4. Compliance with EN 795:2012.
5. Pictogram: Read user instruction before use.
6. Description of usage.
7. Product combination with different attachments.
MAX 5 mm
MAX 5 mm
Figure 9. A close-up on the Insertion Marking Label, which shows accepted
tolerances when inserting the SkyReach Anchor into its attachment.
