Loading System MkII Assembly
21

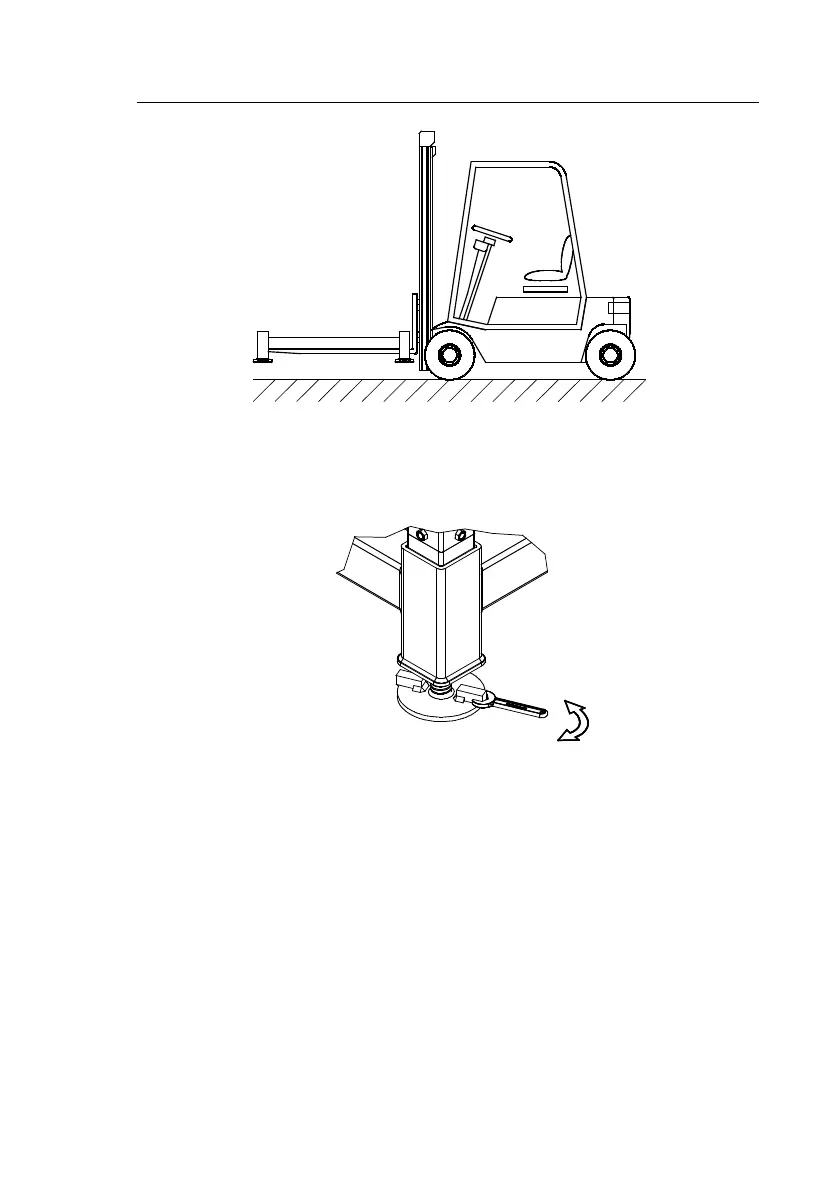

Figure 12. Lifting the Bottom Frame with a fork lift truck.
Figure 13. Adjustment of the Foot height with a 22 mm spanner.
2. Place the four Corner Posts into the Bottom Frame, with the welding nuts
facing outwards. (When using the Precast Kentledge as ballast, it is
recommended to insert only the two rear Corner Posts before loading the
ballast.)
Make sure that the Corner Posts are inserted the correct length into the
sleeves, observe the Insertion Marking Label position, see Figure 14.
