COMBISAFE System Mk II - Assembly: Corner Post Alignment; Corner Post Insertion Marking Alignment

Assembly Loading System MkII
22

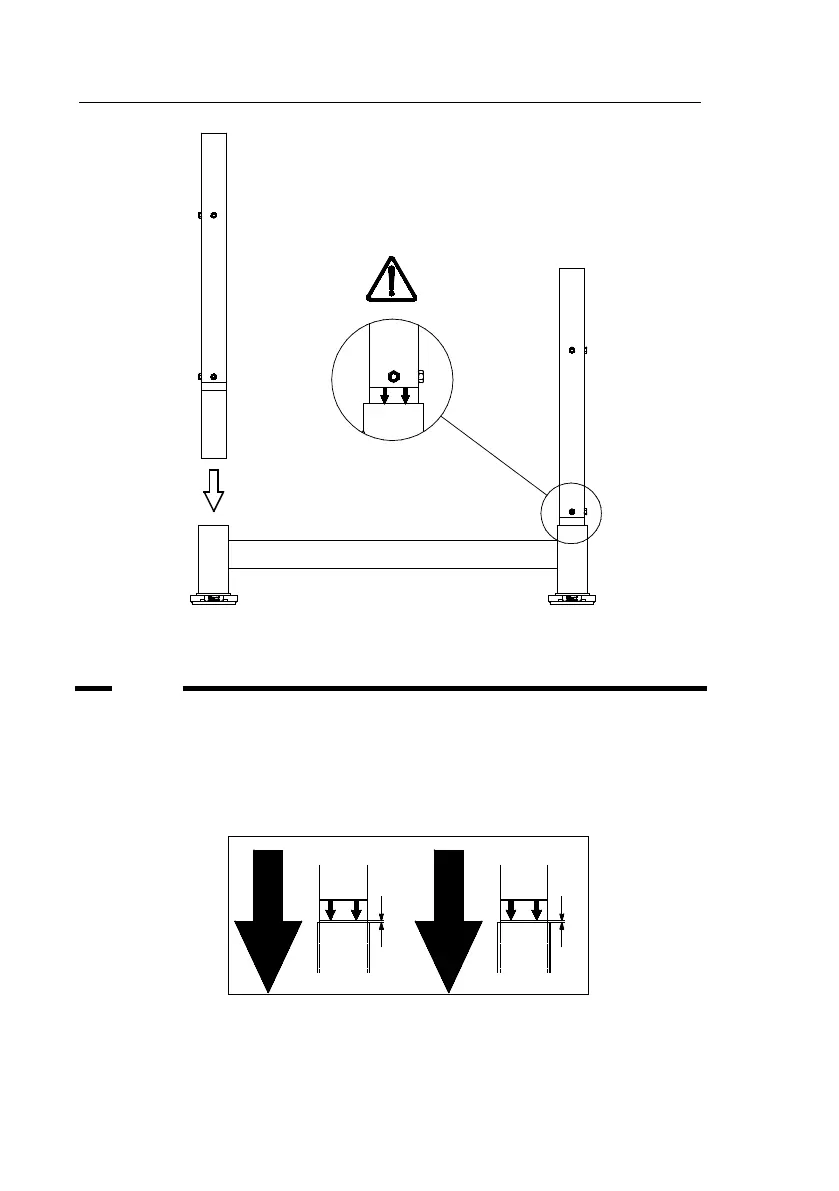

Figure 14. Insertion of the Corner Posts.
The lower edge of the Insertion Marking Label on the Corner Posts
must be aligned with the upper edge of the Bottom Frame Posts for
a safe and proper installation. See Figure 15 below for a closer
illustration of the label.
MAX 5 mm
MAX 5 mm
Figure 15. Close-Up of Insertion Marking Label.
NOTE
