Loading System MkII Assembly
25
4.2 Cut twelve 70x45 wooden ribs to 920 mm in length and four pieces of 18
mm Formwork Plywood, complying with EN 636-3, to the format
1285x920 mm and cut out a notch in one corner as shown in Figure 19.
Make four similar side board units according to these instructions, and
then fix the ribs to the boards with wooden screws as in Figure 19.

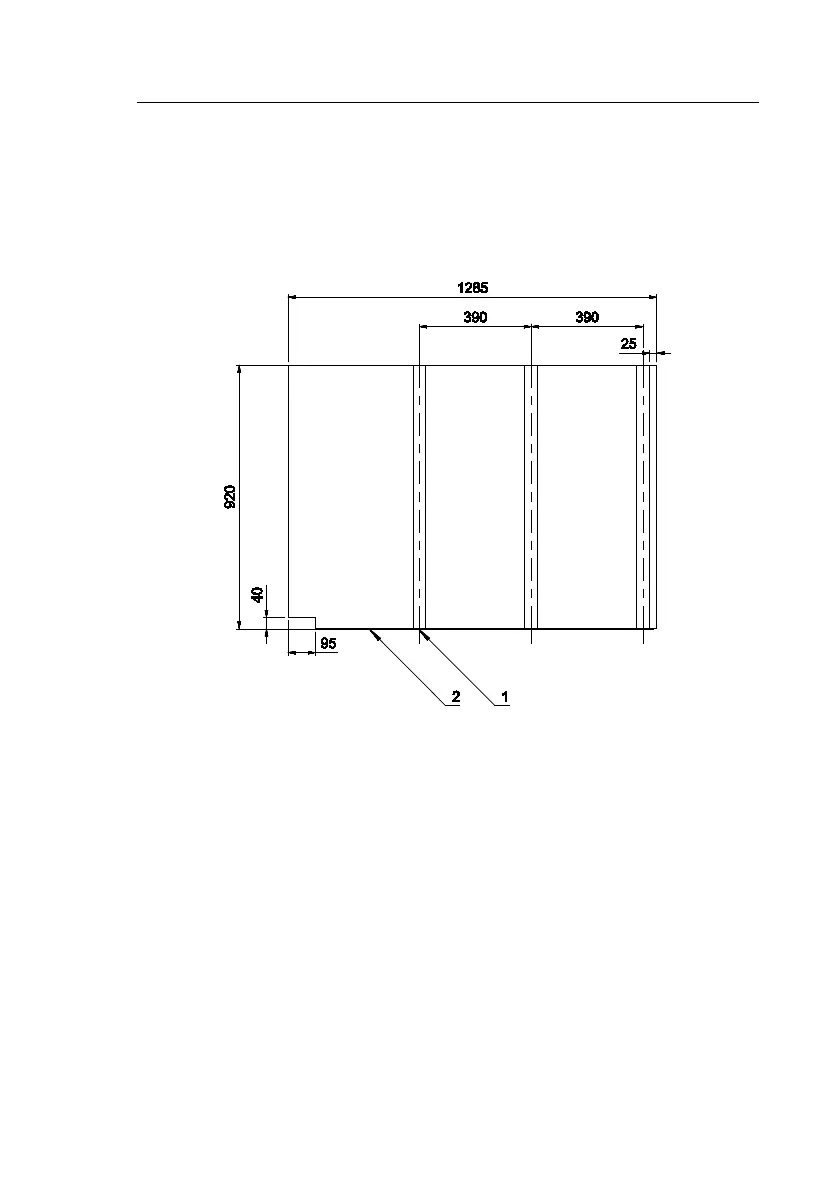

Figure 19. Dimensions for the concrete side board.
1. 3 x Wooden Rib (45x70x920)
2. Concrete Side Board
4.3 Place the four Concrete Side Board assembly units equally one after
another onto the Bottom Board located in the Base, with the notch facing
down and the Wooden Ribs leaning towards the Formwork Supports, see
Figure 20. Make sure to place all the units overlapping so that all the
sideboard units get the same support when leaning against the Formwork
Supports.
NB. Suitable base and side boards are available from Combisafe, order
code 11595
