Assembly Loading System MkII
26

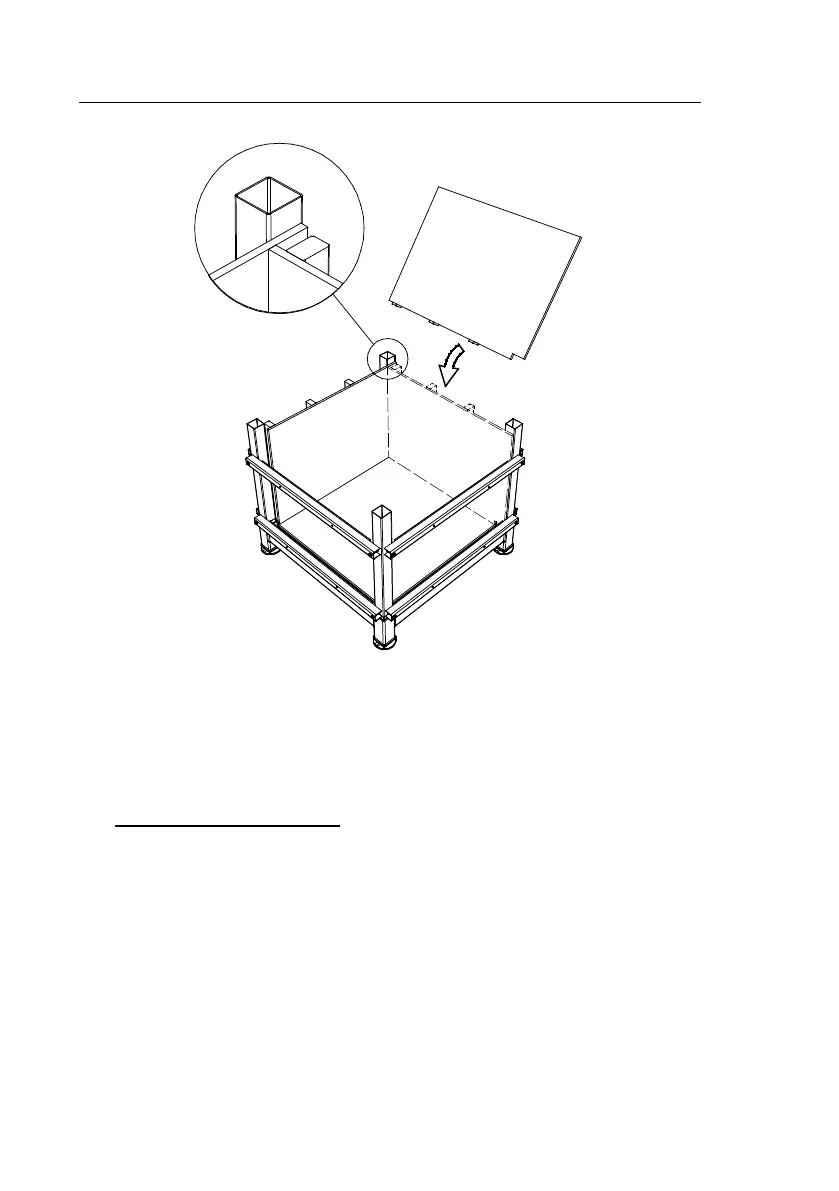

Figure 20. Placement of the side board units.
4.4 When all the sides are in place and the plywood boards create a tight
box, fix the boards with wooden screws if needed. Please proceed to step
6 for mounting of the top frame.
5. Gravel filled ballast option
5.1 Check that all four Corner Posts are inserted correctly into the Bottom
Frame. Cut a piece of 18 mm Formwork Plywood, complying with EN
636-3, to the format as shown in Figure 21 and place in the centre of the
Bottom Frame. Bolt the eight Formwork Supports to the welding nuts.
Use the bolts attached to the Formwork Support, see Figure 22. At this
step it is not necessary to tighten the bolts.
NB. Suitable base and side boards are available from Combisafe, order
code 11594
