Comelit 1456B - Configuration of Art.1456 B; 1) Connection

6
40-56 Vdc
B
+
-
A1
ONLY WITH COMELIT RED CABLE 2E7T000500
ONLY WITH COMELIT RED CABLE 2E7T000500
FIXED POE
SETTABLE POE
NON POE
A2 A3 A4
Art 1456B
t.
INTERFACE B
IP ADDRESS AUTOIP
INTERFACE A
STATIC IP ADDRESS
192.168.1.200 (default)
ROUTER
Installer PC
ViP SYSTEM
with ViP Manager
version 2.5.0 and higher
with active
internet connection
INTERNET
SIP
PROVIDER

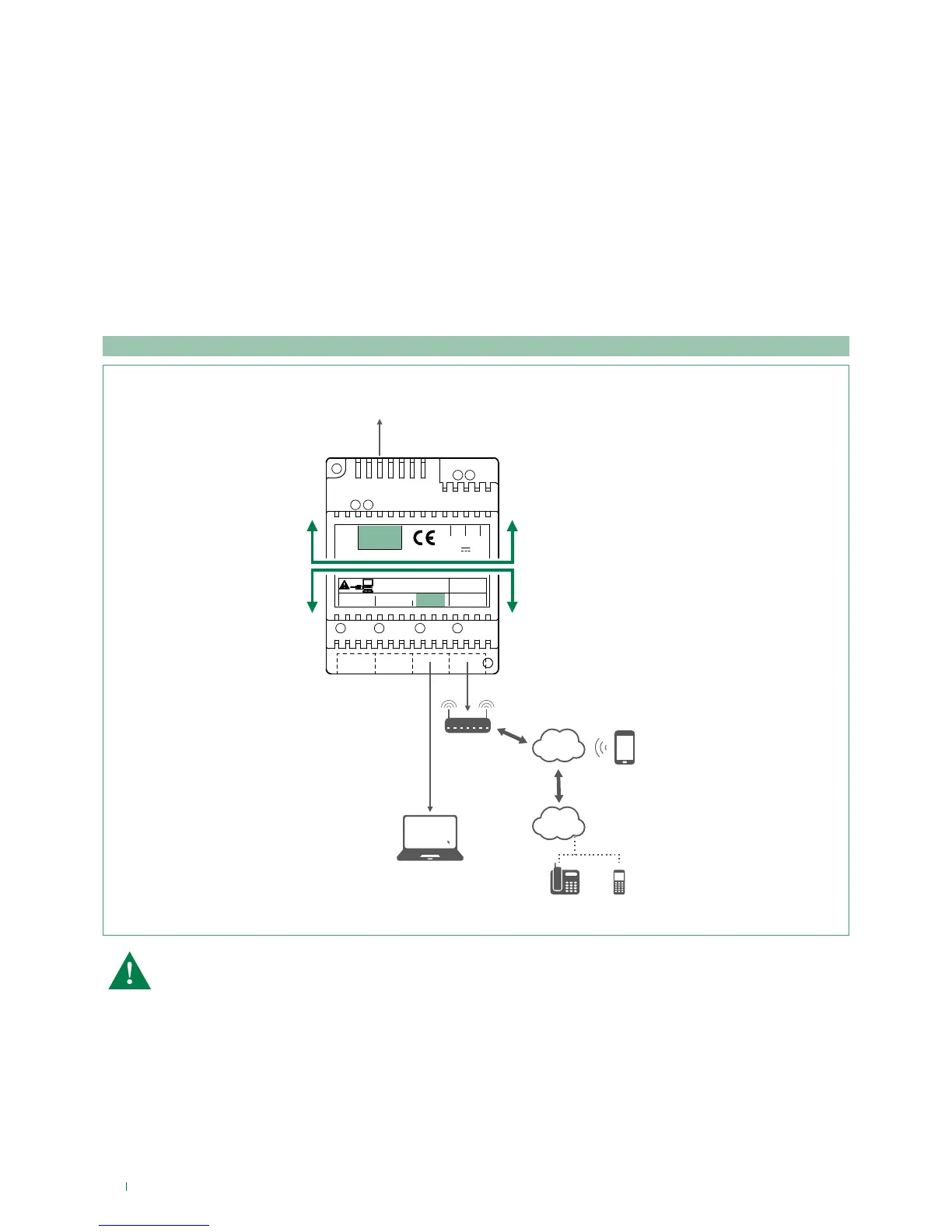

1) Connection
Configuration of Art.1456B
√ This operation requires a PC loaded with the software ViP Manager version 2.5.0 or later (downloadable from the website
pro.comelitgroup.com).
√ An active internet connection is also required.
f Article1456B has 2 network interfaces, A and B, labelled for easy identification, which can be configured separately to meet
dierent system requirements. Depending on the type of system, connect the devices as shown in the following figures:
Take particular care with regard to the network interface settings and do not configure interfaces A and B
with the same addresses or similar parameters: each IP address must be unequivocal, the addresses of the
interfaces A and B must not belong to the same subnet.
ViP NETWORK + INTERNET CONNECTION NETWORK
