Comelit 1456B - 2) ViP Manager Addressing

8
INTERFACE A
STATIC IP ADDRESS
192.168.1.200 (default)
192.168.1.X
192.168.1.1
A1
ONLY WITH COMELIT RED CABLE 2E7T000500
ONLY WITH COMELIT RED CABLE 2E7T000500
FIXED POE
SETTABLE POE
NON POE
A2 A3 A4
Art.1456B
t.
ROUTER
...
Installer PC
...
a
b
c
d
Installer PC
SYSTEM
SCAN
IN DHCP
AN IP COMPATIBLE
WITH THE SYSTEM
WILL BE ASSIGNED
TO THE PC
E.G. 192.168.1.30
During the system scan...

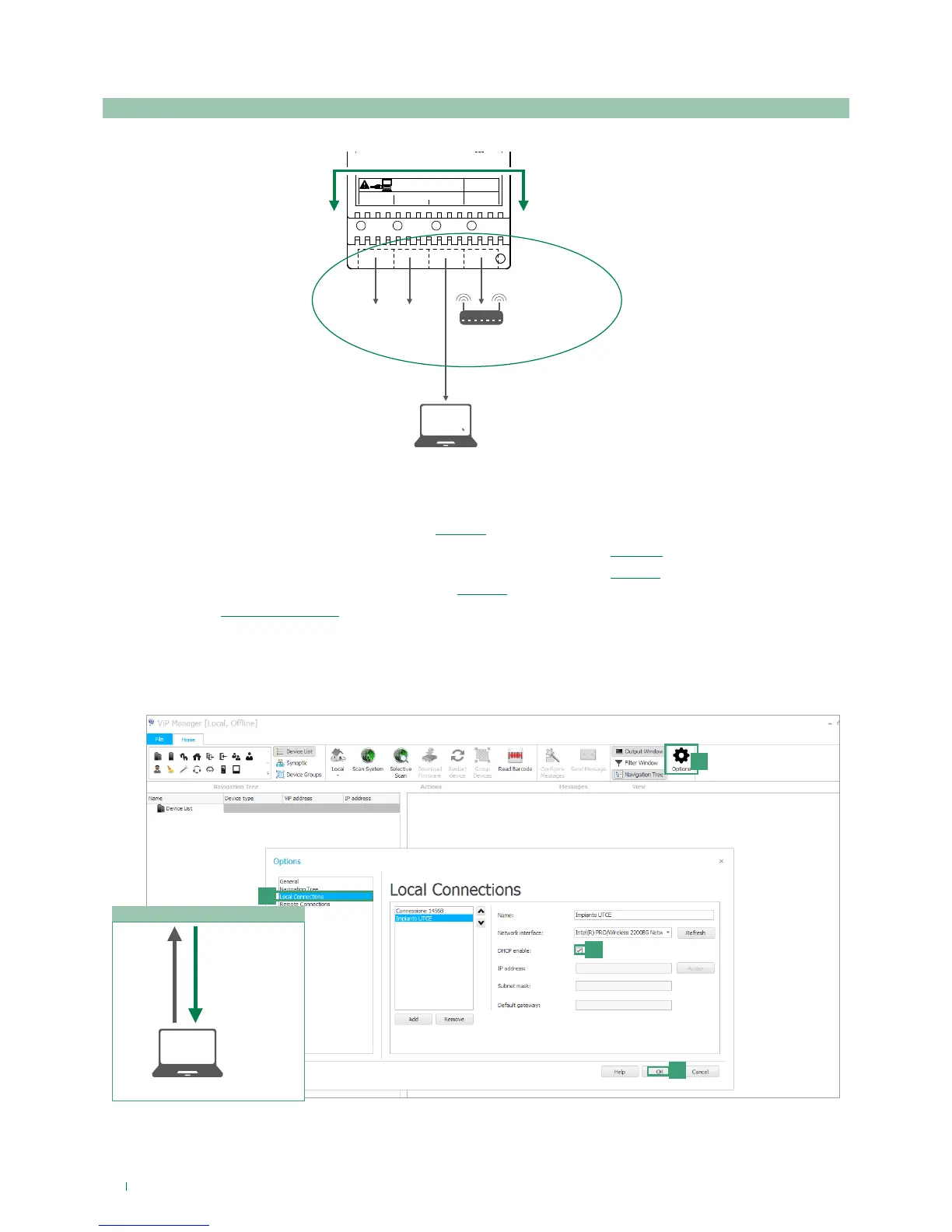

CASE 1: default address of the device (192.168.1.200) belonging to the same router network (e.g.: 192.168.1.1)
2) ViP Manager addressing
Follow the procedure below to perform a system scan in “DHCP”, to locate all the devices connected to interfaces A and B:
• an IP address will be automatically assigned to the devices in addressing mode “Autoip” (connected to interface B);
• an IP address will be automatically assigned to the devices in addressing mode “DHCP” (connected to interface A), if
the system is connected to a server with the function “DHCP” active;
• devices with “Static IP address” will be identified only if they have a network address that is compatible with that of
interface A.
1. From Options [a] / Local connections [b] tick DHCP Enable [c] and confirm [d].
PERFORM A DHCP SYSTEM SCAN AND ASSIGN A ViP ADDRESS
