Rev. 1 | 01/2020 | MS Safety Module | © 2020 | Comepi srl
EN

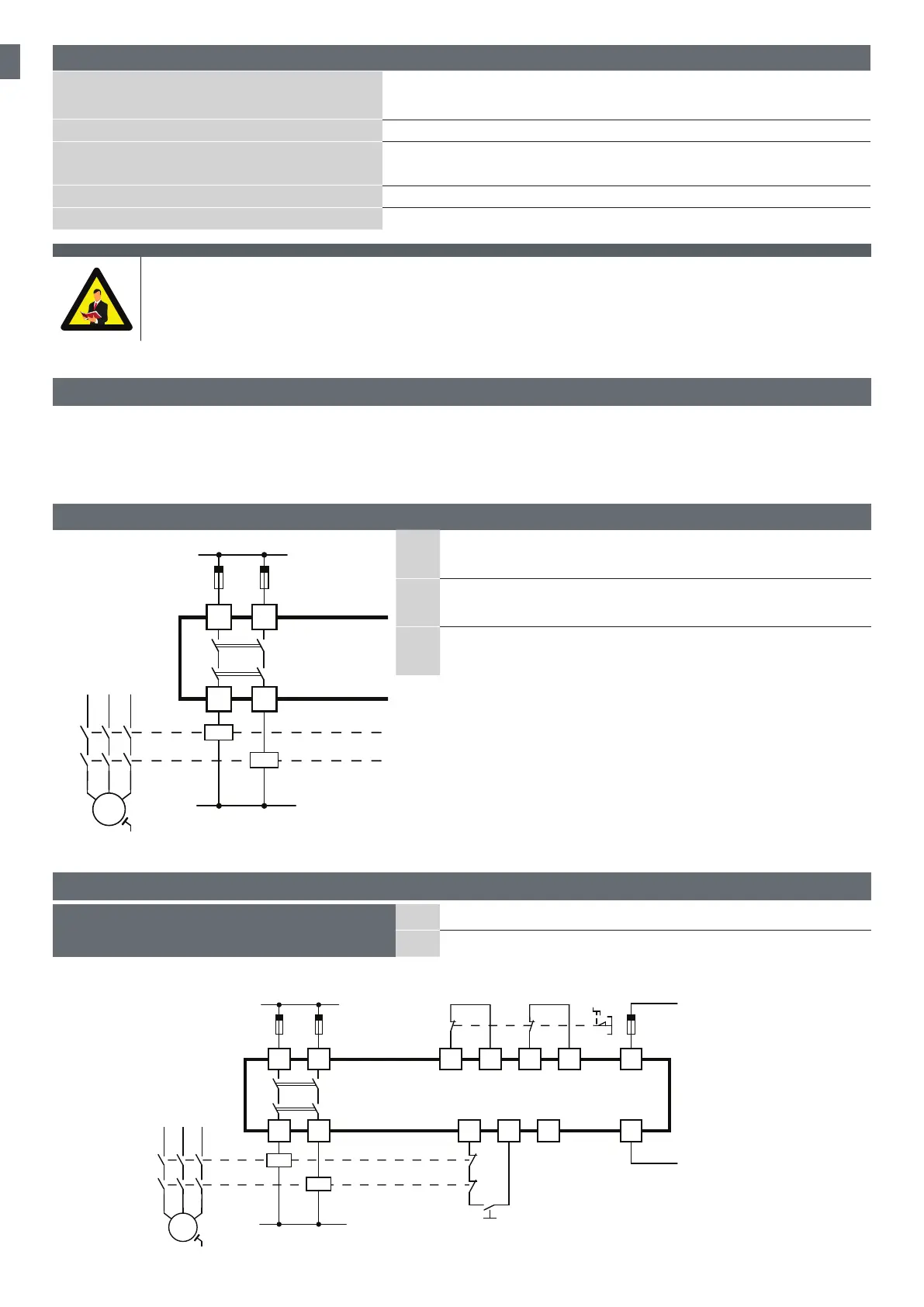

Not only must the output be safe, but also the complete wiring and surroundings. In order to reach cat. 4 of functional
safety, two outputs must be wired as a pair, so that a defect of one output cannot cause a total loss of safety, as the other
one of the pair is still able to switch o the dangerous parts of the plant (or machine). So wiring similar to the following
has to be done:
6.4.1 Outputs function
A
The NO safety outputs switch on (contact closes) when the
safety inputs are active and the start/reset is pressed.
B
In case of intervention of the safety inputs, the NO safety
outputs are switched o
C
If the power supply fails, the NO safety outputs are switched
o
6.4 Function description
13
14
23
24
M1
3~
M
K1
K2
L
N
E-STOP
Pwr 24V (+/~)
Pwr 24V (-/~)
X3
6.5.1 E-stop, safety limit switch and
safety interlocks (double channel mode)
A
A cross circuit between the two channels will be recognized
B
In case of a fault the safety outputs will switch OFF
6.5 Application
A1
A2
X1 X2
S11 S12 S21 S22
13
14
23
24
M1
3~
M
K1
K2
Manual start
L
N
E-STOP
Pwr 24V (+/~)
Pwr 24V (-/~)
X3
Information:
You must comply with the safety-related parameters in order to ensure the required safety level for your
plant/machine. All the units which use a safety function must be considered when calculating the overall
safety level.
6.3.8 Environmental
Protection grade
IP40 on frontal part of the housing, IP20 on the terminals. The device
has to be installed in a cabinet with protection degree of IP54.
Pollution degree 2
Operating Temperature
-25 ÷ +60°C (-13 ÷ 140°F), UL: +40°C (104°F);
(tested @ temp 65°C (149 °F) as per lift norm)
Storage Temperature -30 ÷ +70°C (-22 ÷ 158°F)
Ambient humidity range R.H. ≤95% non condensing
