COMEPI MS1A31-024 User Manual

24
Rev. 1 | 01/2020 | MS Safety Module | © 2020 | Comepi srl
EN

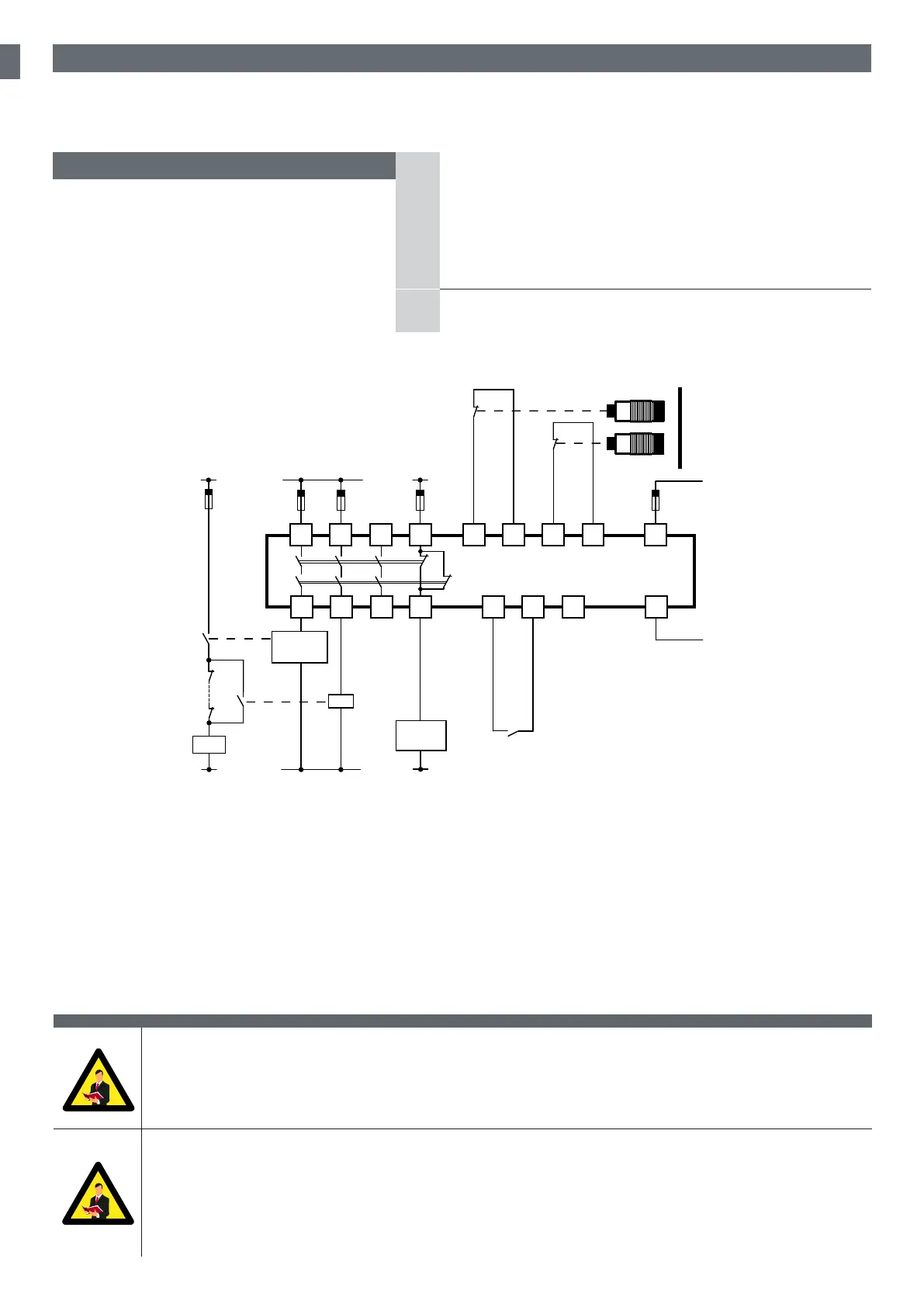

7.5.4 Lift levelling application
The MS1A31-024 is designed to be employed in lift plants for oor levelling and relevelling of the cabin, according to the
requirements of EN 81-20 and EN 81-50 Standards, and according to the 2014/33/EU Lift Directive.
Sensor 1
Sensor 2
A1
S11 S12 S21 S22
13 23 33
L
Pwr 24V (+/~)
41
Door zone and
unlocking zone
A2
X1 X2 X3
14 24 34 42
Start
Pwr 24V (-/~)
L
L
Lift
controller
N
Feedback
to lift controller
Lift
controller
K1
N
Drive
Safety
circuit of cabin
landing and
cabin doors
Lift controller
N
Information:
Lift car levelling safety module, designed according to Lift Directive 2014/33/EU and to safety circuit
requirements of EN 81-20, EN 81-50 Standards.
Information:
EN 81-20: Safety rules for the construction and installation of lifts. Part 20: passenger and goods/passenger
lifts.
EN 81-50: Safety rules for the construction and installation of lifts. Part 50: design rules, calculations,
examinations and tests of lift components.
Lift levelling with magnetic sensors
A
The module monitors the two re-levelling sensors and when the
cabin is in the re-levelling zone, it enables the safety outputs.
One safety output must be connected to bypass the circuit
that monitors the cabin landing and cabin doors, when the lift
cabin is inside the re-levelling zone; further to the landing and
re-levelling of the cabin at the oor, the safety module detects
eventual faults and the lift controller will stop the lift.
B
The inputs S12, S22 are connected to the re-levelling zone
sensors
